PrimeLine tissue machines

PrimeLine tissue machines by ANDRITZ: Flexible and reliable tissue machines that incorporate both experience and innovation. From complete tissue production lines down to single components, ANDRITZ delivers state-of-the-art tissue and air drying technology.

Experts in tissue

ANDRITZ PULP & PAPER is an experienced and proven partner to the global tissue machine industry. Through continuous development and project experience around the globe, ANDRITZ offers world-class tissue machinery and components with innovative features. Experience at production speeds exceeding 2,000 m/min, high-quality paper grades, as well as advanced solutions to reduce overall energy consumption form the basis of our offerings.

Tissue machines product portfolio

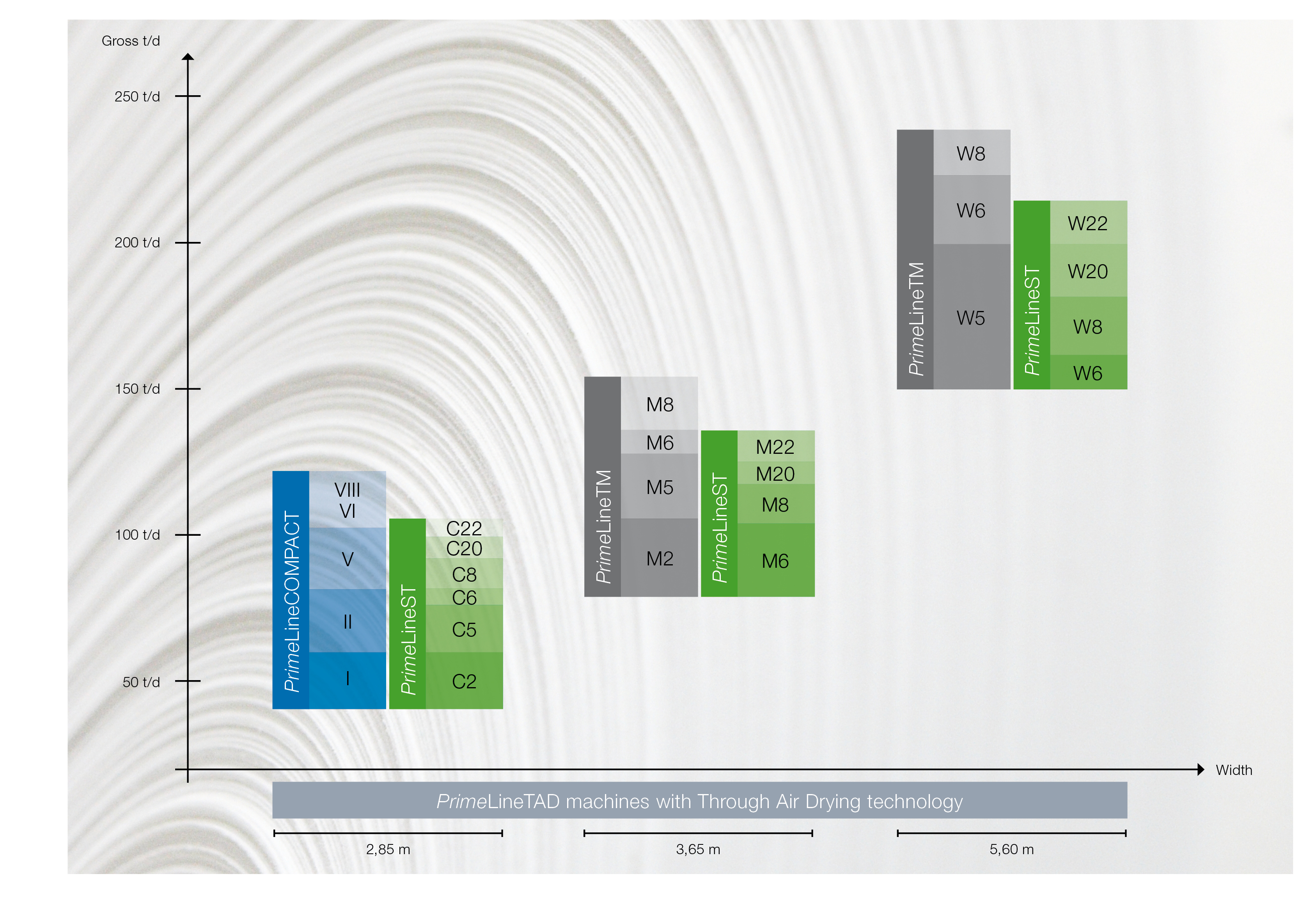

ANDRITZ tissuemachines overview

There is increasing pressure for tissue producers to improve efficiencies and reduce consumption of energy. ANDRITZ has solutions that are innovative, efficient, and minimize the consumption of resources – without compromising on product quality. PrimeLine tissue machines are available as PrimeLineCOMPACT, PrimeLineTM, and PrimeLineTAD tissue machines. Key components of these tissue machines are ideal for rebuilds and modernization projects.

PrimeLine COMPACT tissue machine

PrimeLine COMPACT tissue machine

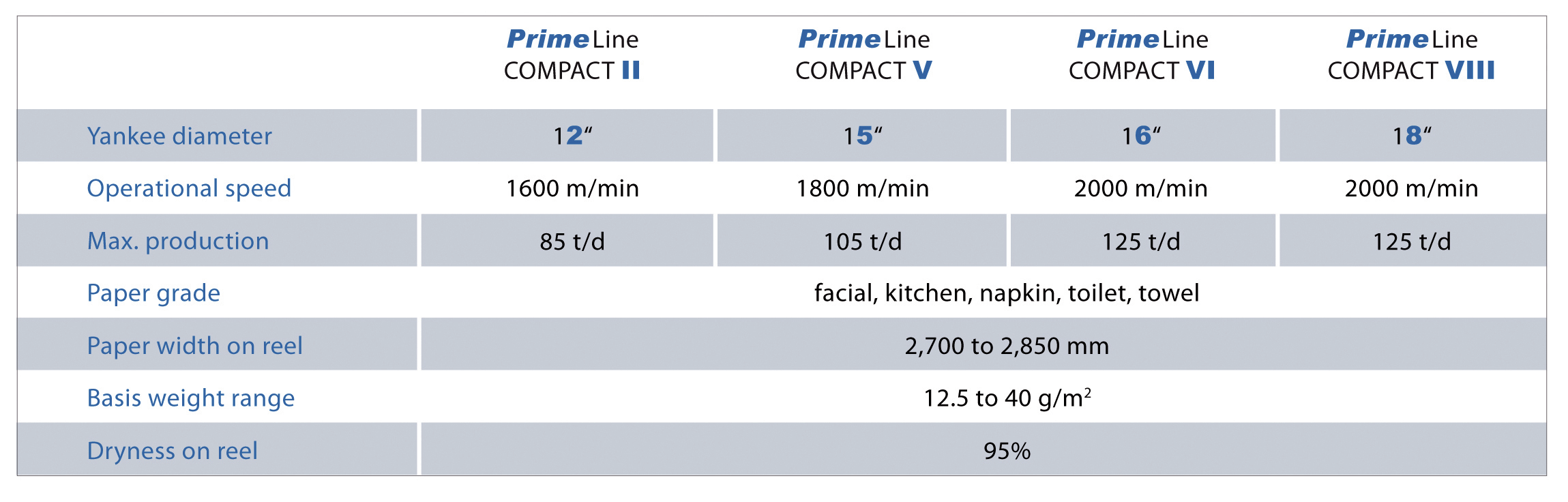

PrimeLineCOMPACT data

PrimeLineCOMPACT data

PrimeLineTM tissue machine

With key components that save resources

PrimeLineTM machines are widely embraced by the global tissue industry — not only because of proven performance, but also for continuous innovations. ANDRITZ brings new energy-saving features and capabilities to its CrescentFormer machines and components: Type M machines (widths from 3.4 to 3.65 m) and Type W machines (widths from 5.4 to 5.6 m) can be equipped with a PrimeDry steel Yankee (up to 22 ft. diameter), a PrimePress XT shoe press, and a PrimeDry heat recovery re-evaporation system, which help to improve yield, efficiencies, and energy conservation.

PrimeLineTM

PrimeLineTM

© ANDRITZ
PrimeLineTM data

PrimeLineTM data

PrimeLineTAD tissue machine

Premium tissue through-air drying technology

The improved softness, absorbency, and bulk generated by the Through-Air Drying (TAD) process give these products superiority over conventional processes.

Find out more about PrimeLine TAD


PrimeLineTAD

PrimeLineTAD

Reduced energy consumption is the key

ANDRITZ offers the EconoFit control concept that monitors and analyzes the drying process to reduce energy consumption. The new PrimeDry steel Yankee (up to 22 ft. diameter) is made entirely of steel, resulting in greater safety and higher performance due to the elasticity of steel compared to cast iron. The higher performance can be used to save on energy costs by drying more with steam, which is generally relatively cheap.
