- Pharmaceuticals and fine chemicals (APIs, antibiotics, pharmaceutical intermediate products, active substances, etc.)
- Special fields (vitamins, liquid crystals, etc.)
PUREVO is the advancement of the Krauss-Maffei HZ Ph peeler centrifuge from ANDRITZ KMPT. In close cooperation with our customers, proven technologies have been combined with innovative design features, leading to excellent separation capabilities. The PUREVO pharma peeler centrifuge ensures maximum levels of product purity, yield, and flexibility.
Producing pharmaceuticals is very cost intensive. Not only because it involves expensive raw materials and considerable R&D efforts, but also because the industry is subject to constantly changing legal requirements. With the PUREVO pharma peeler centrifuge, ANDRITZ SEPARATION provides you with an innovative solution designed to minimize losses and maximize the purity of your products. Built from high-performance materials for hygienic processing, PUREVO meets the rising demand for high-quality pharmaceuticals with high reliability, low maintenance, and exceptional ease of operation.
All surfaces are of high quality, and dead zones have been eliminated to allow for ideal cleanability. Following a hygienic drive concept, only pneumatic/electric drives are used in order to meet the highest standards in terms of process and product purity. The PUREVO pharma peeler centrifuge is equipped with a fully inspectable process area (including the front shaft sealing).
The PUREVO’s special design keeps all lubricants and mechanical abrasion outside the process area and thus avoids product contamination. Moreover, seamless monofilament filter cloths prevent product bypass as well as abrasion.
During operation, the basket, feed pipe, and peeler arm can be easily monitored by the operating staff through the inspection window. Analog and continuous detection and evaluation of the feed level are carried out by means of an analog feed control (FCA) system, which detects the liquid and solid level, or a contact-free measurement based on ultrasonic or radar.
Product changes can be performed quickly and the process parameters can be adapted easily to different product characteristics. The PUREVO pharma peeler centrifuge features a fully automatic CIP program for guaranteed and validated cleaning within the shortest possible time. Thanks to our patented SmartFIX fastening system with endless tension strips, the filter cloth can be changed within a few minutes, thus reducing maintenance time and costs by around 50%.
Thanks to its patented peeler and discharge geometry, fluidization, and pneumatic residual heel removal features, the PUREVO pharma peeler centrifuge discharges products with virtually no losses. For its users, this means maximum yield, even with sticky products.
Higher g-forces compared to vertical centrifuges and inverting filter centrifuges enable faster product processing in the centrifuge. Furthermore, the resulting low residual moisture enables more efficient processing in the downstream equipment, e.g. dryers. This also leads to excellent washing quality and very high product purities.
PUREVO pharma peeler centrifuges are delivered fully assembled for time-saving installation. Working with the machine is also quick and easy, e.g. thanks to effortless opening/closing of the housing via automatic clamping ring. Furthermore, maintenance is simplified by the SmartFIX fastening system for fast exchanging of filter cloths and by the patented peeler knife and basket assembly with a reduced number of tools needed.
Sweeteners, amino/fatty acids
|Filter area:||0.40-2.5 m2|
|Solids content:||From 3% by wt.|
|Average particle size:||1-250 µm|
|Solids recovery:||Almost 100%|
One of the most striking features of the PUREVO pharma peeler centrifuge is its hinged housing. By means of an electrically driven, extremely hygienic closing system, the housing can be opened easily, quickly and safely, and then swung to the side manually. This provides a full view of the entire process area with all the seals. The process area boasts generous radii and avoids dead zones and crevices to provide easy cleaning. All surfaces have a high-quality finish.
All connections are fitted from the inside of the process housing and sealed with exposed O-rings. The process can be fully inspected through a sight glass. Dead zones are virtually avoided in order to reduce product deposits. CIP nozzles are arranged in such a way that all areas can be perfectly accessed with cleaning agent. The housing can be flooded, enabling highly efficient cleaning. If required, the housing can be of pressure vessel or vacuum design.

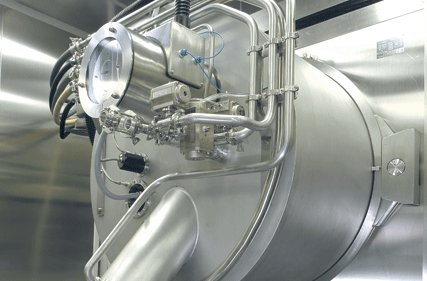

The process and drive area of the centrifuge are kept completely separate for easy installation in clean rooms. The machine operates with a fully pneumatic/electric drive concept. In order to allow operation with highly active substances and provide maximum purity, the product does not come into contact with any of the operators, nor with the environment.
To ensure fully automatic cleaning, the PUREVO pharma peeler centrifuge is equipped with a proven CIP program developed – together with operators – by ANDRITZ KMPT. In combination with several rinsing nozzles that enable flooding of the entire centrifuge housing, the program is a key factor in the verifiable cleaning effect demanded by today’s producers of pharmaceuticals.
In a first step, the cleaning agent is fed in via the cleaning nozzles at reduced rotational speed. Here, most of the remaining solids are removed from the basket and the interior of the housing.
All discharge pipes from the centrifuge are closed. The centrifuge is filled up to the basket rim with cleaning agent. The speed and direction of rotation are now varied according to a defined program. The machine undergoes effective cleaning through this “washing machine effect”. Even the solids discharge chute is completely flooded at the end of this step.
The machine is rinsed out again with water fed in through the cleaning nozzles in order to remove the final residues and surface dullness.
Smart design, easy access to the drive and process area of the centrifuge, quick removal of essential parts that need maintenance at regular intervals, and minimized use of tools – all these are essential factors for easy maintenance. Thanks to a range of innovative, well-thought-out maintenance features, the PUREVO pharma peeler centrifuge offers its users maximum handling comfort. Moreover, significantly shorter downtimes for maintenance reasons immediately translate into longer uptimes, higher productivity, and optimized yield.

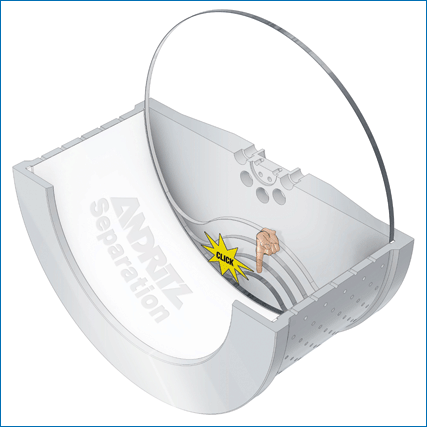

The SmartFIX fastening system enables the operating personnel to change the filter cloth quickly and effortlessly. Thanks to specially designed, endless filter cloths and endless tension strips, the whole replacement process can be carried out in a matter of minutes.
With more than 100 sites and over 2,000 employees worldwide, ANDRITZ AUTOMATION is an international competence center for plant design, plant control, and machine control systems. As a one-stop shop, we provide complete automation solutions for machines like the PUREVO pharma peeler centrifuge as well as for their integration into plant layouts. Our products and services have helped operations achieve record start-ups, increase capacity, improve efficiency, and save money.
Our ANDRITZ addIQ control system makes sure that you invest your money in the highest standards.
It is based on the latest PLC and HMI technologies, such as Siemens S7-1500 F or Allen-Bradley Compact/Control Logix S, and has an integrated fail-safe system. Using different bus systems (preferably PROFINET), the control system can be linked to the existing DCS.
VPN remote routers allow remote service and remote assistance at the customer’s request.
Our specialists have bundled the latest research findings and fresh insights into a solution package for HMI design. An intuitive operator design ensures full-scale efficiency in operation – from an individual machine up to an entire plant. An overall usability concept takes different requirements of the operating staff into account and, at the same time, enables operators with different levels of experience to fulfill their tasks. Easy-to-read icons diminish barriers of intercultural diversity and minimize translation and training efforts. There is one common HMI design that can be applied for all machines from ANDRITZ SEPARATION.
All too often, safety is compromised in the interest of factors such as time and efficiency – or simply due to lack of knowhow. Many safety requirements have to be considered, e.g. HAZOP, risk analysis, the European Machinery Directive, or ATEX. For CE conformity, the machine and the control system must be seen as one unit.
As a one-stop shop, ANDRITZ SEPARATION can provide you with state-of-the-art safety solutions from a single source.
We have many years of experience in assisting our customers with qualification and validation tasks in compliance with the criteria of good manufacturing practices (GMP) and good automated manufacturing practices (GAMP).
ANDRITZ SEPARATION offers special training courses for its automation systems. In order to achieve the best possible results, we use individually tailored training systems that apply order-specific software for machine and process simulations. An ANDRITZ certificate proves that its recipient has successfully completed the training and is qualified to work with the respective system.
The ANDRITZ Remote Service Portal provides easy web access to your machine: Monitoring and full control is ensured by a web browser via smartphone, tablet, or PC. Smart supervision of the current equipment status, peripherals, and machine performance is ensured. Optionally, service requests can be generated via smartphone app

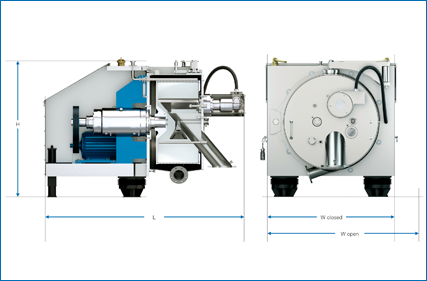

|Model||L (mm)||W open (mm)||W closed (mm)||H (mm)||Weight (kg)|
All technical data are approximate and subject to change without notice
*) Basis: Density of saturated filter cake 1,250 kg/m³ at T = 50 °C
