Fields of application:
- RCF systems (OCC and DIP)
- PMA systems
- Bleached chemical pulps
PrimeClean TO cleaner
Two-in-one cleaning at LC-consistency level 0-3%
The new PrimeClean TO is the latest innovation in the ANDRITZ cleaner family based on the hydro-cyclone principle and combines two cleaning stages in one cleaner unit.
Technological cornerstones of the new design:
- Two cleaning stages in one cleaner unit with additional dilution between the stages
- New design with 3-conic cleaner construction.
Main advantages of the new cone design:
- Superior separation efficiency
- Streamlined and very compact cleaner plant layout thanks to operation at high feed consistency
- Long life time due to durable high-tech OX material

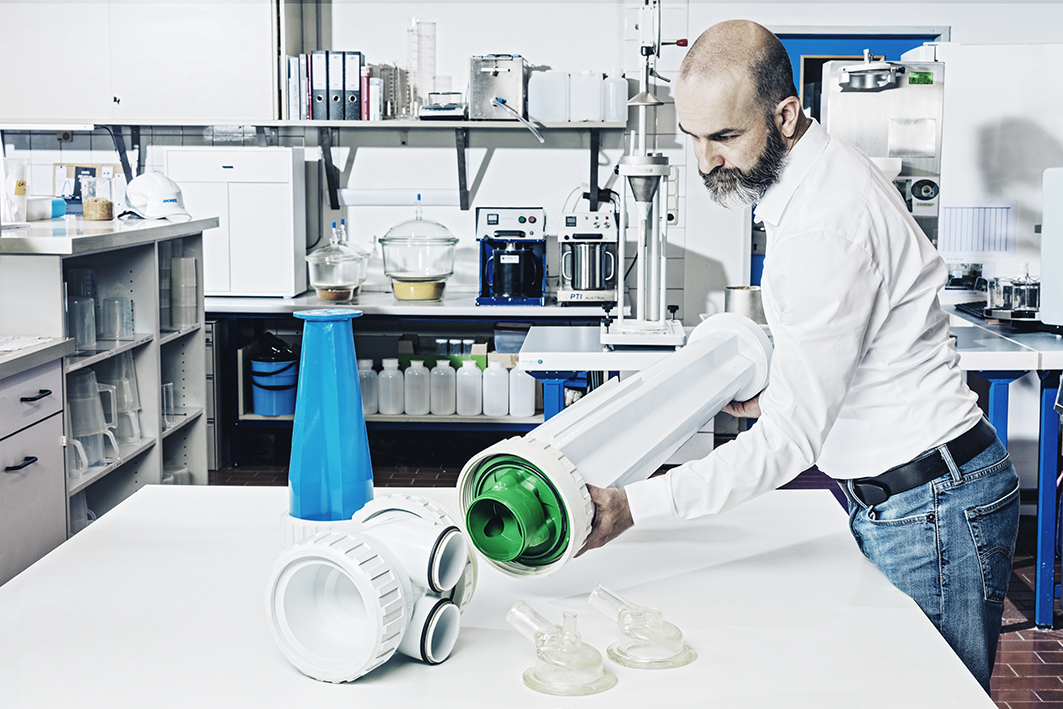

PrimeClean TO in the laboratory in Graz
© Croce&Wir
PrimeCleanTO dismounted
© Croce&WirThe new PrimeClean TO at a glance
- Two cleaning stages in one cleaner unit:
- Additional dilution
- Cleaner design with 3 small-diameter cleaner tubes
- Superior cleaning efficiency
- Despite high feed consistency (up to 2-3%)
- Thanks to 3-conic cleaner system
- Reduced pumping energy thanks to cleaning at higher consistency compared to a conventional cleaner plant
- Reduced wear thanks to OX polymer material used for all parts exposed to stock
- Perfect to upgrade existing SC133 cleaner banks
- Same connecting dimensions

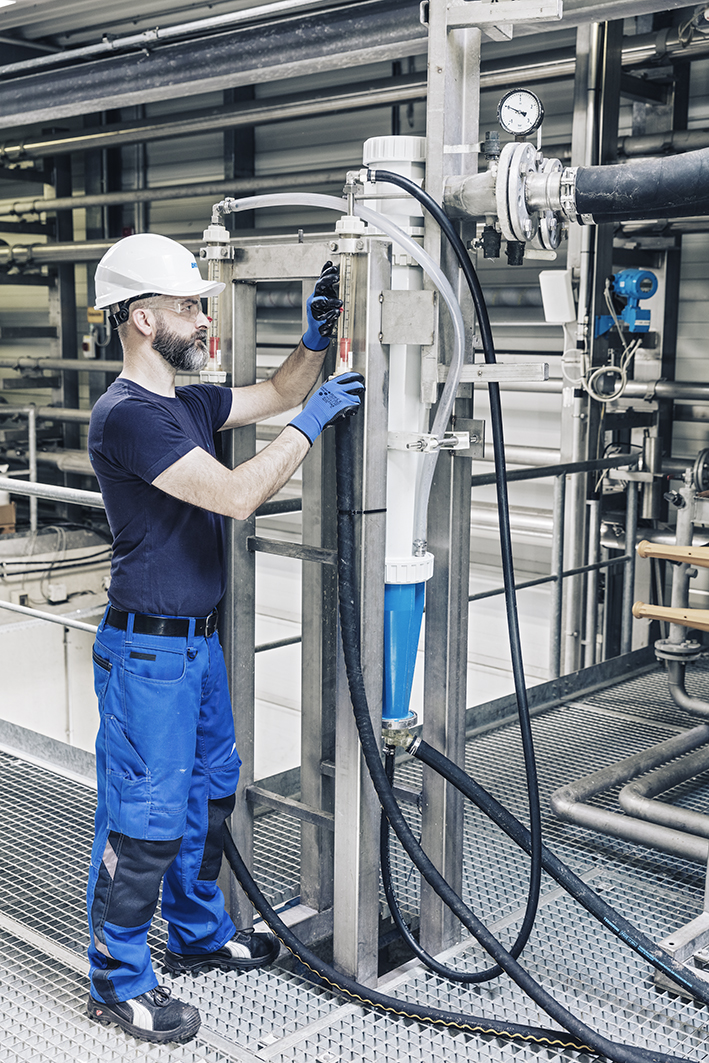

PrimeCleanTO in pilotplant Graz
© Croce&Wir

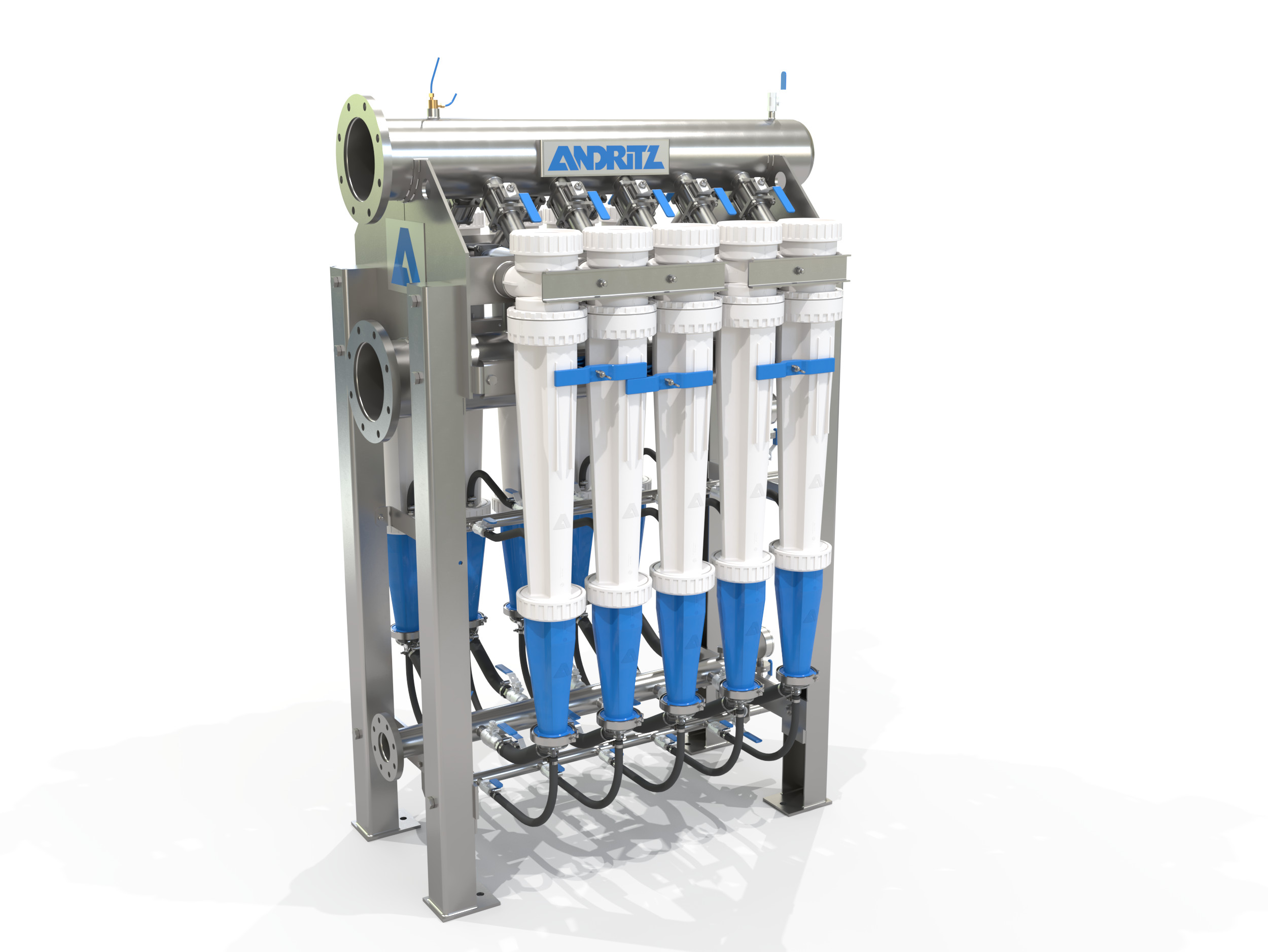

PrimeCleanTO cleaner bank
© ANDRITZ
