Reject treatment systems

ANDRITZ systems for turning pulp and paper mill waste into value

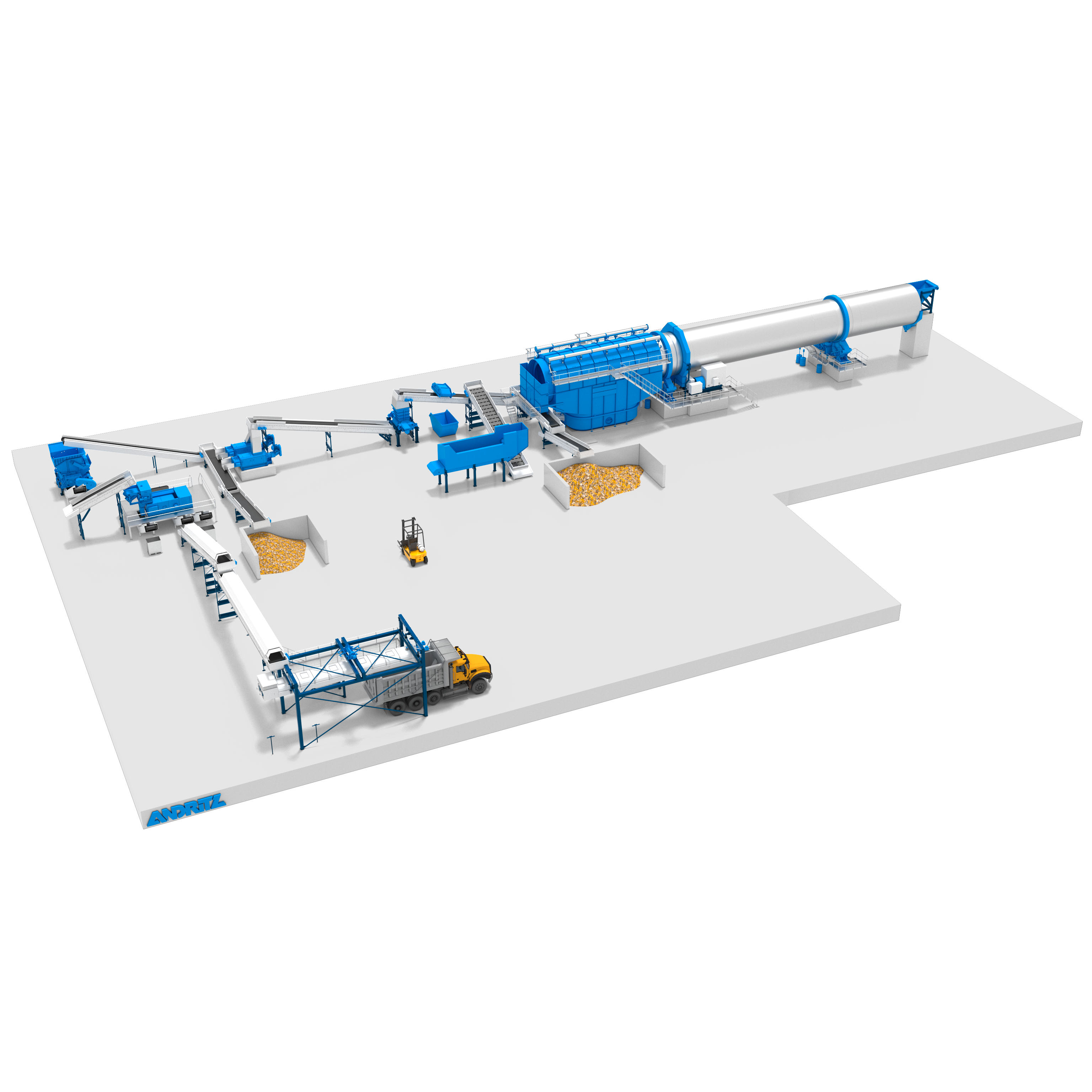

Reject system based on drum pulping

Converting industrial waste into valuable resources and energy

Every recycled fiber line needs a proper water, sludge handling, and reject system in order to operate economically. The goal is to minimize losses of process materials, recover and conserve resources (fiber, water, and energy), and minimize waste disposal.

In addition, many rejects can be valuable and even generate income for a mill: for example metals as raw materials and plastics as a source of energy. Rejects from recycled fiber processes are worthy of optimum and properly adapted treatment to extract their full value. The processes must be cost-efficient and simple, as well as fulfilling certain requirements to ensure that the rejects can become fuel (e.g. combusted), can be sold or re-used (e.g. pelletized), or can be disposed of at minimum cost and effort. This requires knowledgeable handling of the reject and a thorough knowledge of the individual process steps.

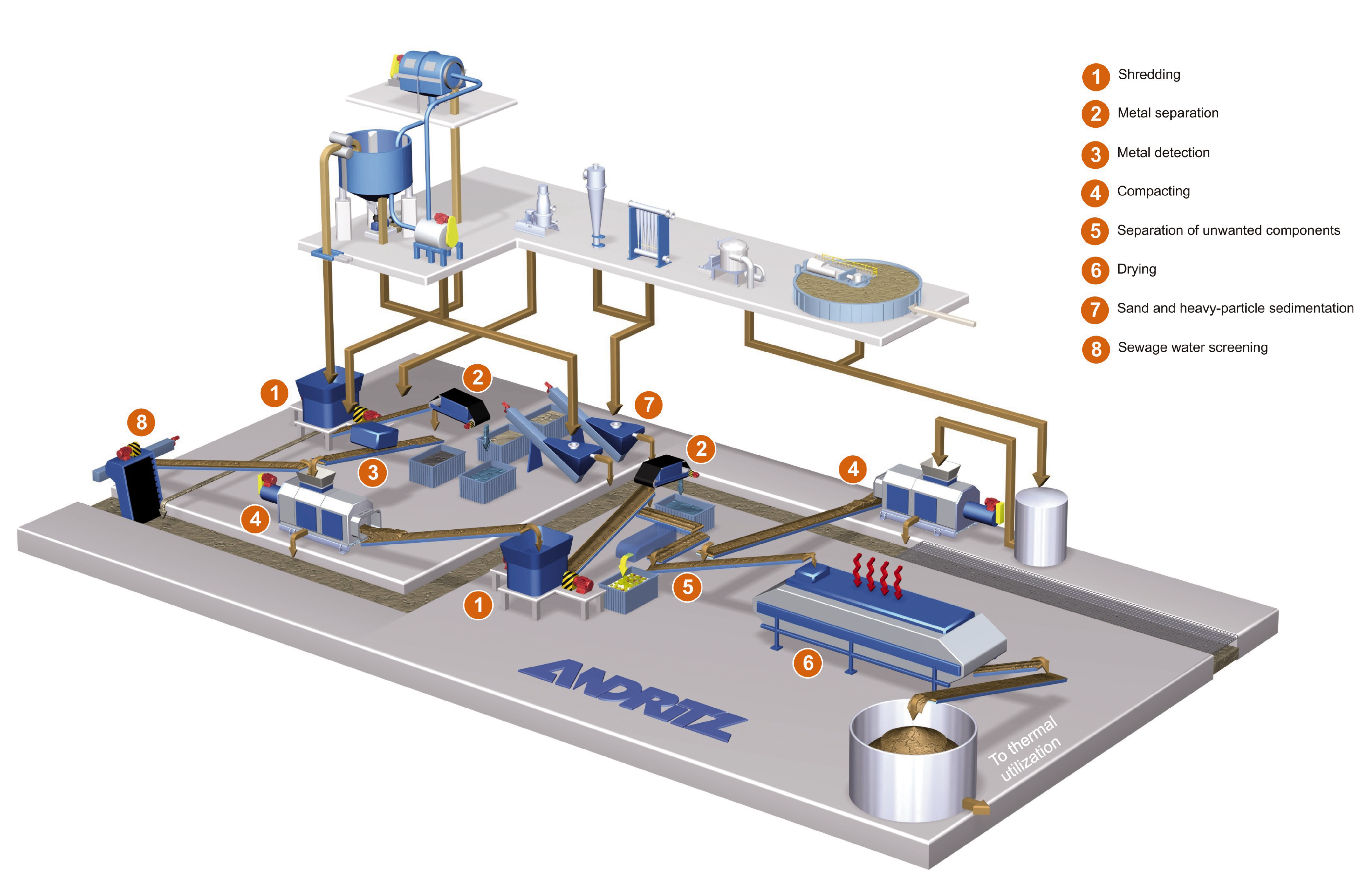

System based on conventional pulping

Screenshot-VR-ANDRITZ-Refrigerator-Recycling-Plant

Virtual plant tour

Join us on a virtual tour through a reject treatment plant!

Start tour

Typical paper mill, industrial waste sources

  • Pulper rags
  • Loose pulper rejects – containing mainly plastics, metals, stones, wood particles, etc.
  • Sand containing cleaner rejects
  • Light weight rejects from the coarse screening
  • Rejects (e.g. pins, screening rejects) from BCTMP and TMP plants
  • Bark and residuals from wood yard handling
  • Thinning wood and residual material from forestry

Benefits of reject treatment systems

  • Compliance with the legal requirements for protection of the environment, e.g. landfill directives
  • Reduction of disposal and transportation costs up to 30%
  • Pre-treatment of rejects for fuel generation
  • Reduction of greenhouse gas emissions (CO2) from 25% to over 40%
  • Additional income from recycling of raw material, e.g. metals or plastics
recycling-input-rejects-pulper-rags (1)

Pulper rags

Important source of raw materials in waste paper recycling.

Weiterlesen
spectrum37_SunPaper_cover

Sun Paper: Helping to save the planet

Sun Paper’s Honghe mill, based in Shandong Province, China, needed a tailor-made handling system to process rejects from two OCC production lines feeding its PM 31 and PM 32 paper machines. ANDRITZ successfully delivered one system in 2016 which has been quickly followed by a second.

Weiterlesen
