More from less

ANDRITZ LimeWhite™ producing the best white liquor that you need

The ANDRITZ LimeWhite™* is a pressurized disc filter, which performs both white liquor filtration and lime mud washing, and because of the high discharged mud solids, it is an ideal selection for mills with tight water balances.

ANDRITZ offers now also LimeWhite-H™* as an upgrade version for previous LimeWhite. ANDRITZ LimeWhite and next generation LimeWhite-H filters provide the best white liquor quality with high availability.

LimeWhite-H

© ANDRITZ

The next generation lime white filter

ANDRITZ has completely remodeled its existing LimeWhite filter solution and introduced the latest next generation filter for pulp producers, LimeWhite-H. The new filter has major benefits including lower investment cost, increased capacity and a smaller footprint.

LimeWhite-H 3D
© ANDRITZ
LimeWhite-H

Advantages of the LimeWhite-H:

  • Continuous operation
  • Clean and hot white liquor
  • Fully automated
  • Higher white liquor yield
  • Reduction in water circulation
  • Less white liquor dilution

Center shaft axial movement

One of the major innovations of the new LimeWhite-H is the introduction of a center shaft with axial movement which allows continuous precoat renewal with no moving scraper, eliminating the need for low pressure washing.

LimeWhite-H Center Shaft Movement
© ANDRITZ

Hollow Shaft

The LimeWhite-H contains a hollow shaft. This means no inner piping inside the shaft itself. This makes a big difference, since higher capacity can be achieved with the new design.

Hollow Shaft, LimeWhite-H
© ANDRITZ

Higher Vat Level

Due to the higher vat level, the filtration area is larger in the new design. Vat level can be raised up to half of the center shaft. Over 30% increased capacity has been measured with this new filter design and without any build-up of lime mud on the shaft.

Higher Vat Level, LimeWhite-H
© ANDRITZ

New Lime Milk Feeding Point

A new lime milk feeding point has been created through the bottom of the filter through the air agitators. Previously the feed point was from the side.

Lime Milk Feeding, LimeWhite-H
© ANDRITZ

Higher Pressure Difference

In the new LimeWhite-H filter there is higher pressure difference through the discs’ filtering cloths that enables higher capacity.

Higher Pressure Difference, LimeWhite-H
© ANDRITZ

Lime Mud Dilution Directly to Scrapers

During normal filtering operation the new LimeWhite-H filter slurry water is sprayed directly onto the scraper to ensure efficient dilution of lime mud and also keeping scraper blades clean.

Lime Mud Dilution, LimeWhite-H
© ANDRITZ

Wash Down Sequence

At some stage of normal filtering operation when the pressure difference over the precoat increases to set point wash down sequence starts. During this wash down sequence the shaft starts to rotate in a reverse direction and at the same time high pressure water jets remove the precoat. This ensures that the lime mud falls into the chute instead of the vat. This function replaces the previous precoat blow-off system design.

Wash Down Sequence, LimeWhite-H
© ANDRITZ

* Trademark of the ANDRITZ GROUP. For information regarding ownership and countries of registration, please visit andritz.com/trademarks.

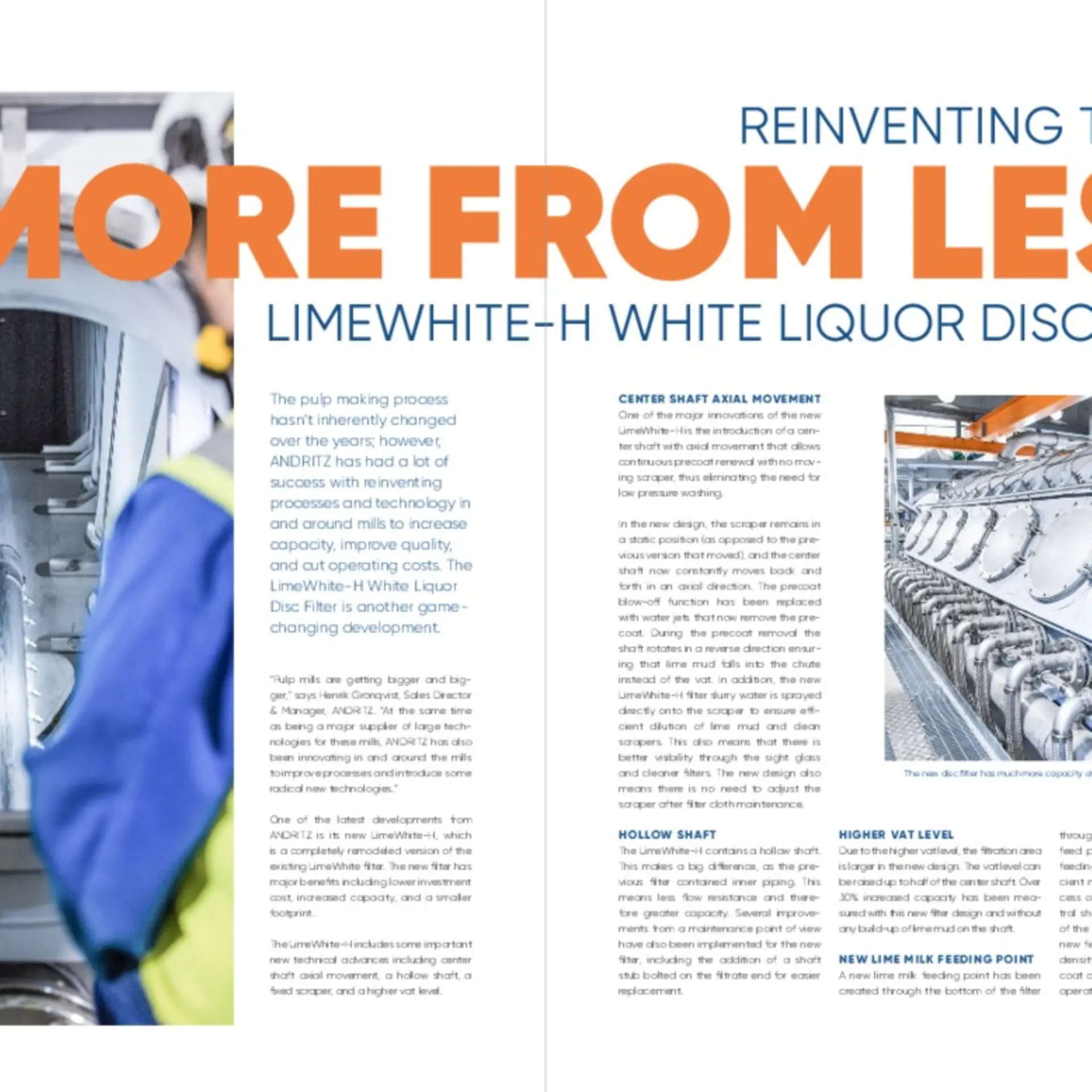

Äänekoski: Reinventing to get more from less

The pulp making process hasn’t inherently changed over the years; however, ANDRITZ has had a lot of success with reinventing processes and technology in and around mills to increase capacity, improve quality, and cut operating costs. The LimeWhite-H White Liquor Disc Filter is another game-changing development.
