The ANDRITZ batch dryer uses a central, top-driven helical mixer in a conical vessel, enabling smooth and efficient mixing of the dry material. Even sticky products can be processed thanks to the special design of the mixing screw.
Due to its heatable vessel and mixer, the ANDRITZ Gouda helix dryer is a high-performance vacuum contact dryer which is processing the product very gentle at low temperatures. Combining central product discharge and optimized screw design, it guarantees almost residue-free emptying. Thanks to the patented shape, the dryer design is very compact and fits very easily into limited room height. Units are available form 4 liter lab units up to 12 m3 production units. Up to 200 liter dryers, the customer is able to choose stationary or mobile design, which offers a big flexibility and efficiently in production.
The mobile units can be designed with a hinged cover for easy access to the process chamber and 100% inspection of all product wetted parts. Additional equipment is available with interchangeable components such as choppers, vacuum system, heating/cooling system and CIP skid. The dryer can be heated with water, thermal oil or steam, depending on the application. Design pressures and temperature ranges can be chosen according the drying needs of the customer.
The ANDRITZ GHD LIB helix dryer is designed to tackle one of the most demanding steps in lithium ion battery recycling: efficient removal of both low and high boiling electrolytes from mixed shredded materials. Its indirect, vacuum based drying process ensures uniform results, high solvent recovery, and clean discharge, even with complex pouch or prismatic cell fractions.
Developed together with industry experts, the GHD LIB provides excellent mixing, superior heat transfer, and complete product emptying thanks to its helical agitator. Safe processing is supported by inert gas filling before charging and an integrated filtration system that minimizes foil attrition while keeping all material safely contained.
Supporting processing capacities up to 4 t/h, the system achieves solvent removal rates of up to 99.5%, improving downstream process safety and black mass purity. Its flexible batch design handles varying battery chemistries and feedstock conditions with ease.

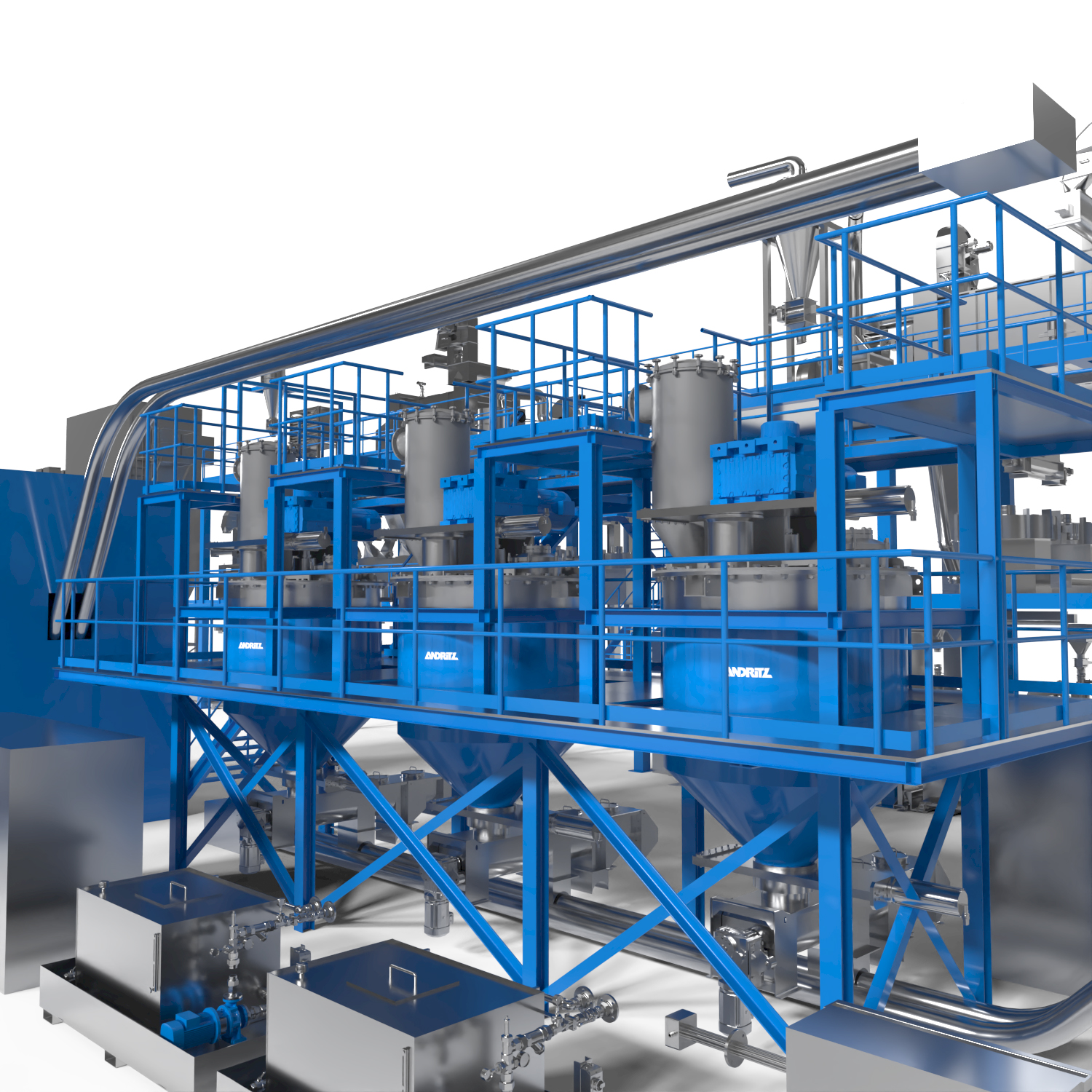

Helix dryer GHD LIB used on lithium‑ion battery recycling
