Nussdorf, Austria

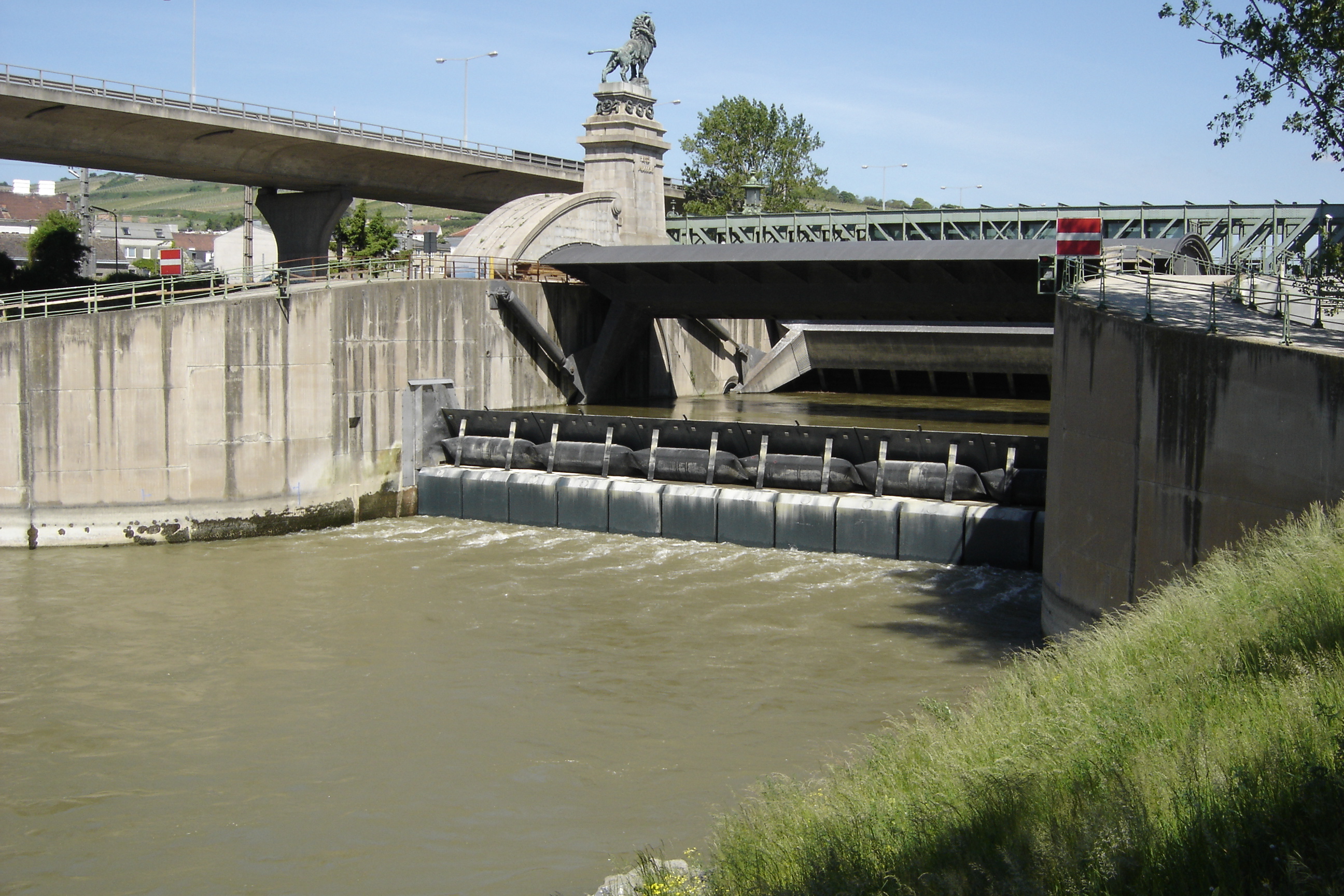

The Nussdorf Hydromatrix plant is located downstream of the Schemerl weir at the intake of the Danube canal at Nussdorf on the outskirts of the city of Vienna.

The weir, together with its two radial gates and the canal, are part of the city’s flood protection system.

AUSTAUSCHEN

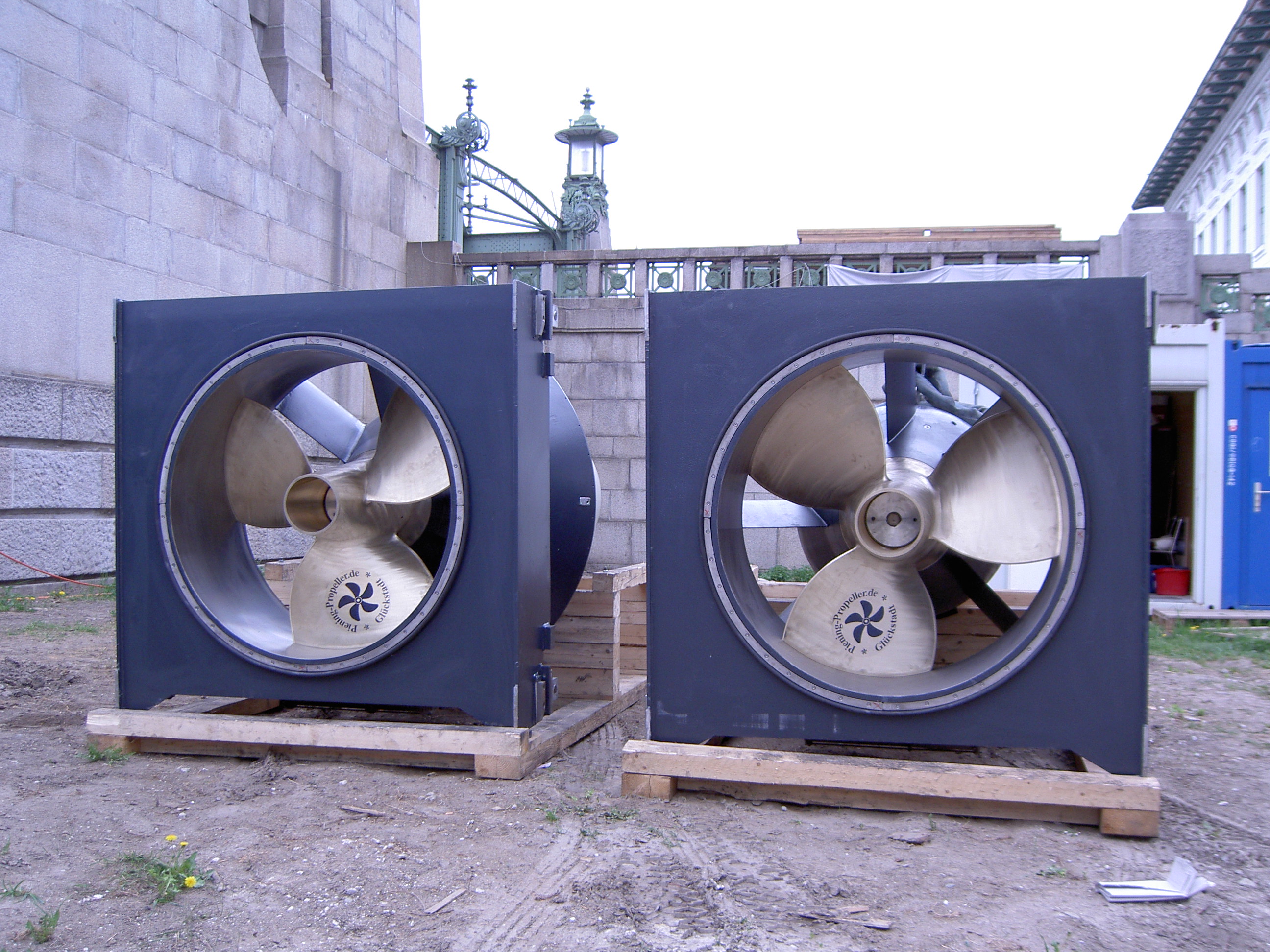

The small-scale hydropower plant consists of a 30 m long, approximately 12 m wide and 7 m high hollow body weir housing, twelve TG units, with spillway gates mounted on top of the weir, and an operation building adjacent to the weir structure.

After a record construction time of only one year, Nussdorf went into operation successfully in 2005.

AUSTAUSCHEN

TECHNICAL DATA

Number of modules: 12
Number of units per module:       1
Total number of units: 12
Axes: horizontal
Head: 5.6 m (18.4 feet)
Runner diameter: 1,320 mm (51.9 inches)
Number of blades: 3, fixed
Distributor:fixed blades
Rated speed:336.7 rpm
Type of generator:Hydromatrix, induction
Voltage:690 V
Output per unit:545 kW
Output total:6.5 MW
Date of commissioning:2005
