Service technical center calenders

ANDRITZ offers an excellently equipped test center at the Krefeld site in Germany, which you can use at any time

Benefit from:

  • Well-equipped, practice-oriented environment to handle many fields of application for embossing of wipes, calibration for melt-blown material, laminating of roofing material or filters, thermobonding, perforating of top-sheets, compacting of wetlaid fabrics, comparisons between thermal and ultrasonic laminating, textile finishing
  • Our technical center includes several calenders and test equipment to suit your needs perfectly

  • In addition, our top-performance 3D microscope allows an in-depth view inside your product and offers several measurement options

For nonwoven and textile applications:

​​​​​​​Pilot calenders (various roll combinations and configurations can be applied):

  • 3 roll laboratory calender with pressure up to 300 N/mm and speed 300 m/min
  • 3 roll laboratory calender with pressure up to 400 N/mm and speed 1 - 500 m/min
  • 2 roll laboratory calender with pressure up to 300 N/mm and speed 5 – 80 m/min
  • 3 roll production calender with pressure up to 400 N/mm and speed 5-85 m/min

Rolls and sleeves:

  • More than 200 engraving rolls and shells
  • Various sleeves and coatings e.g. polyamide, composite, cotton, rubber and silicone with a hardness range of Shore A-D and a width of 300mm can be chosen
  • Special rollers available for aramid papers and automotive upholstery in roll width 300mm

Contact our service for getting more inormation about our test center

Visit our test center page

Test center for nonwoven calendering at ANDRITZ Küsters, Krefeld, Germany

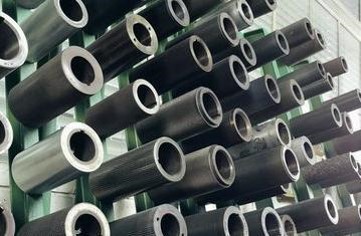

Various rolls, sleeves and other equipment for numeros test scenarios

download
  • Brochure_Technical center calendering 2019 PDF : 2.9 MB
  • Responsive service for nonwoven calenders PDF : 3.1 MB
