Up to 240 m/min
Linear speed
ANDRITZ adult pant eXcelle
A new reference in the production of adult pants in efficiency and quality performance
ANDRITZ Diatec adult pant platforms feature a state-of-the-art process with highest quality standards. All machines are customizable and offer top-class components and advanced technology solutions for the benefit of customers. To respond to the challenges of adult pants machines, ANDRITZ has developed ultrasonic side seam technology, which ensures bond strength and system reliability without interfering with machine speed.
Up to 300 pcs/min
Production speed
85%
Uptime efficiency
1-3%
Waste
Width: up to 1,000 mm
Product dimensions
220/480 Vac, 50/60 Hz 3 phases + N + PE (24 Vdc auxiliary)
Electric power supply

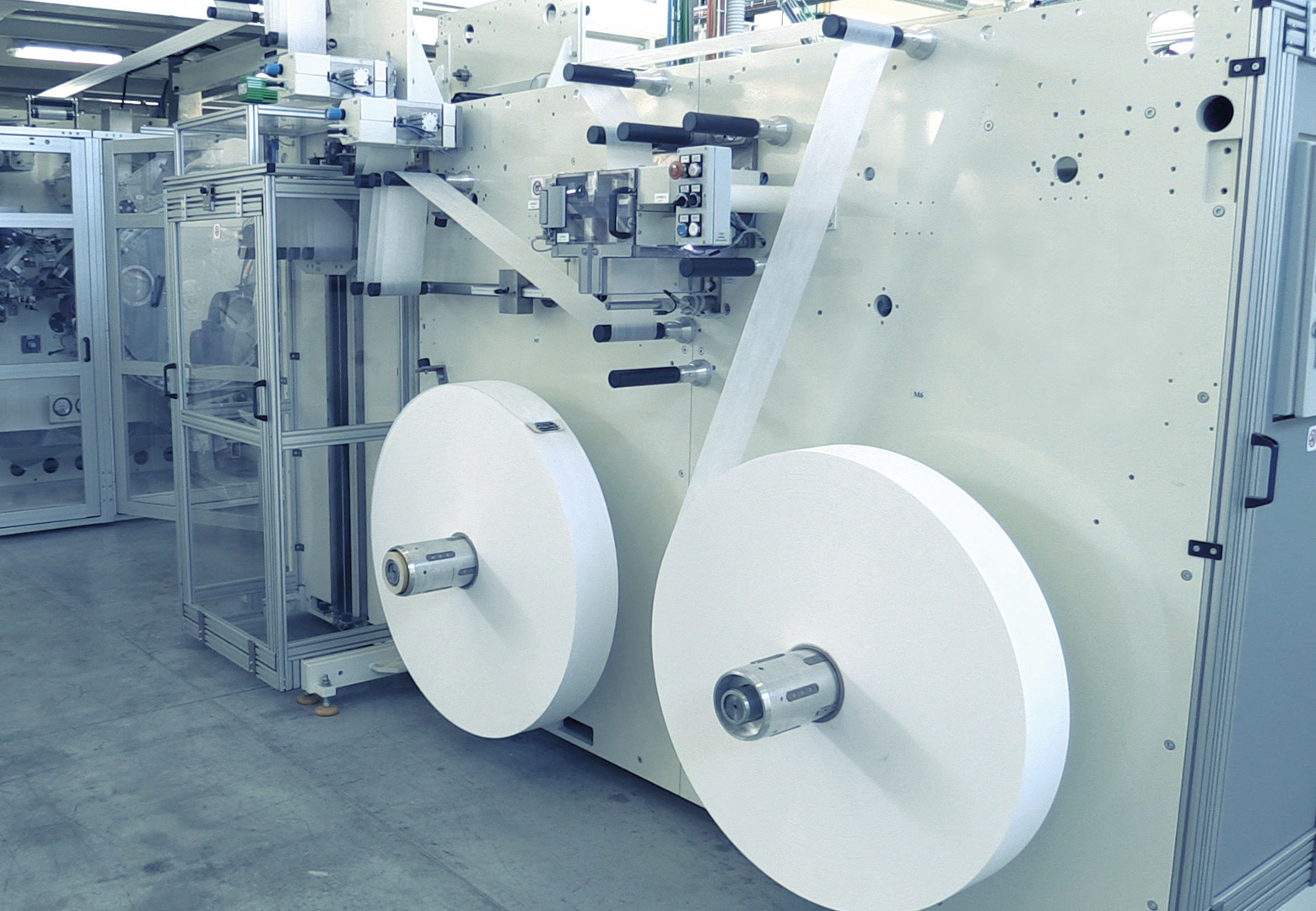

Single yarn control unwinding system

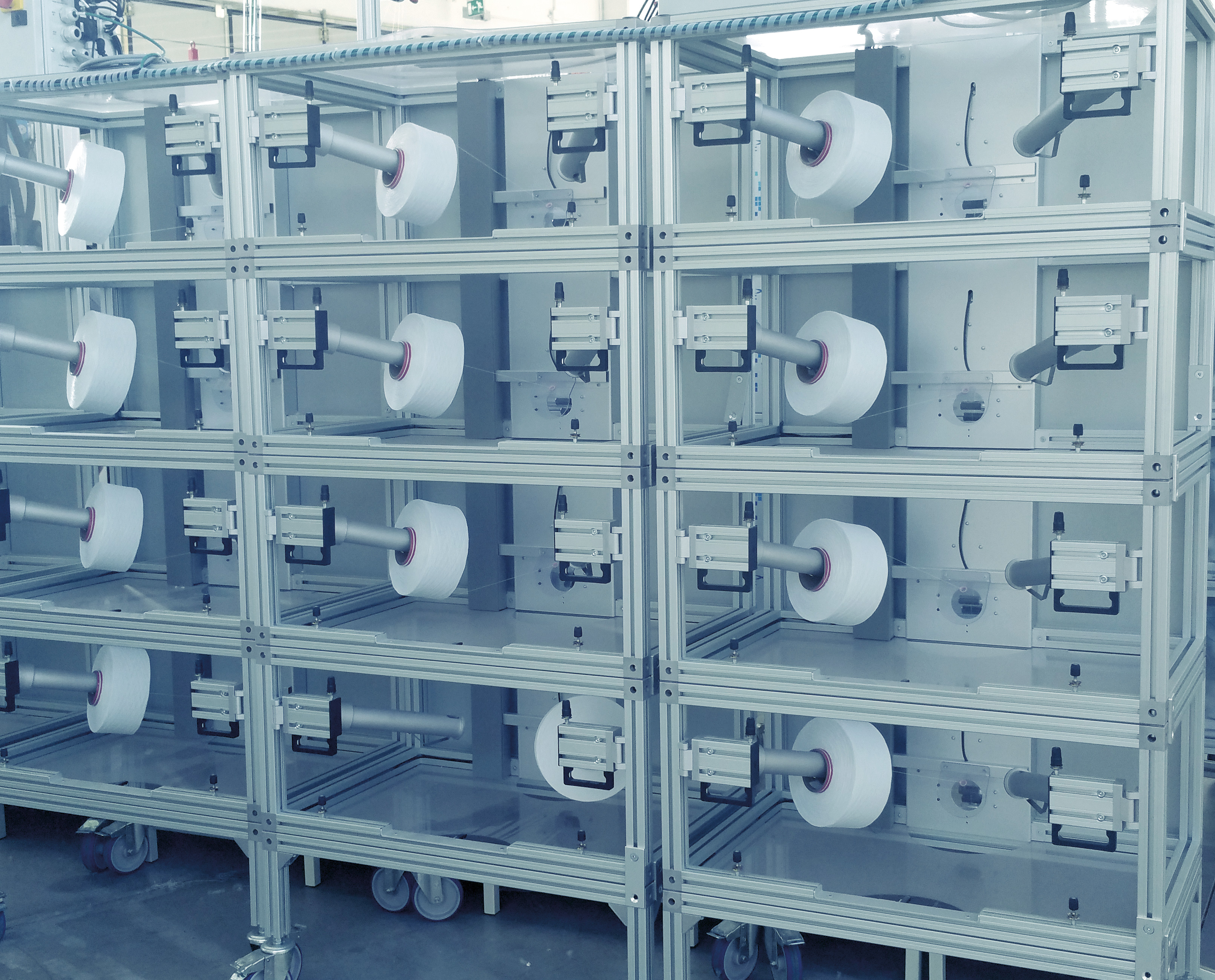

Adult pants converting unit
© ANDRITZ

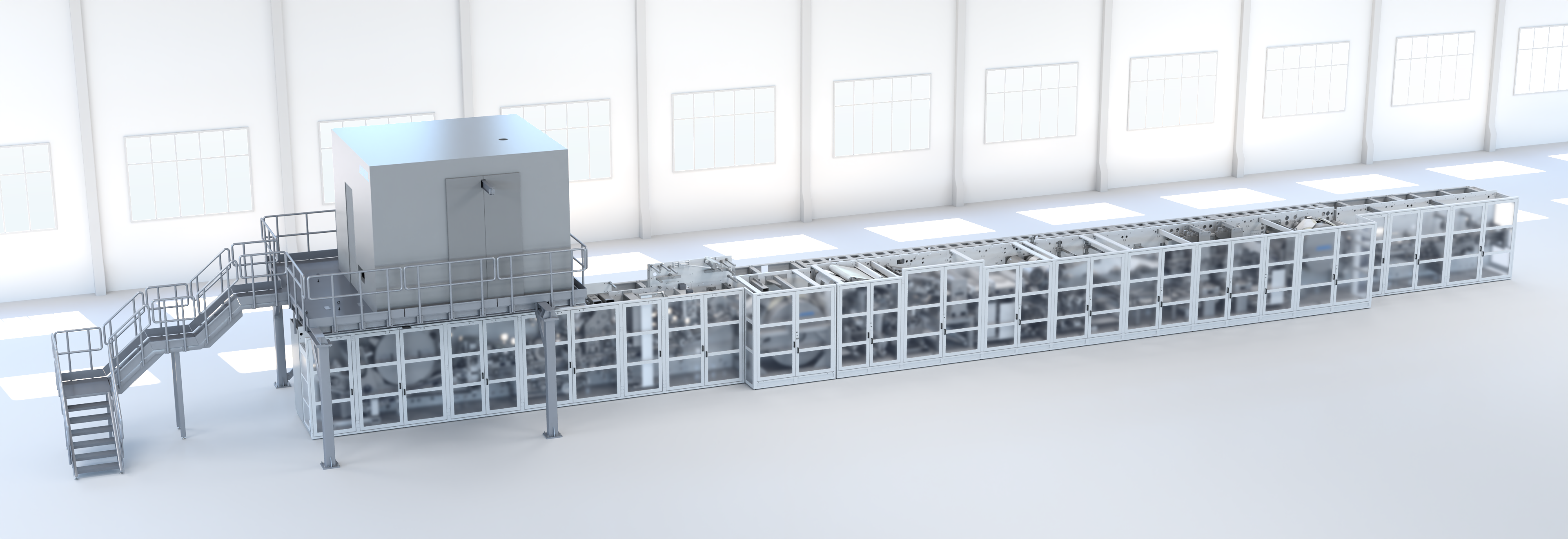

ANDRITZ neXline adult pant line for a flexible and high-productive processing
© ANDRITZYour benefits:
- Modern forming system for higher S.A.P. concentration
- Integrated insert cutting, turning and placing system for maximum process stability
- Innovative ultrasonic side sealing solu-tions for higher strength and system reliability
- Ergonomic and operator-friendly process
- Fast and easy operation and size change
- Customized process and machine layout for specific needs
Core forming module
- Cellulose pulp stand
- Compact disc mill (or hammer mill) with double inlet
- Drum former, 3D or flat
- Core processor
- S.A.P. dosing system
Folding and final cutting area
- Rotary die unit
- Longitudinal folding system
- End sealing system (ultrasonic)
- End cutting station
- Final turn and repitching drum
- Final longitudinal folding system
- Bi-folding system
- Reject system
- Full servo-motion system
- Hot-melt system
- Manuals, drawings and software
Product assembly and final
cutting area
- Backsheet processing units
- Leg cuff creating system (glue, thermo, ultrasonic)
- AQL cutting and splitting unit
- Waistband elastic lamination system (glue, ultrasonic)
- Curved elastic application system
- Elastic cutter
- Integrated insert module
- Disposable tape applicator
- Offline unwinders with automatic splicers
Optional equipment
- Second drum former
- Online backsheet lamination
- Additional size change kits
- Quality system LS with line scan camera
- Wetness indicator application
- Metal detector
- Lotion application system
- Glue vision system

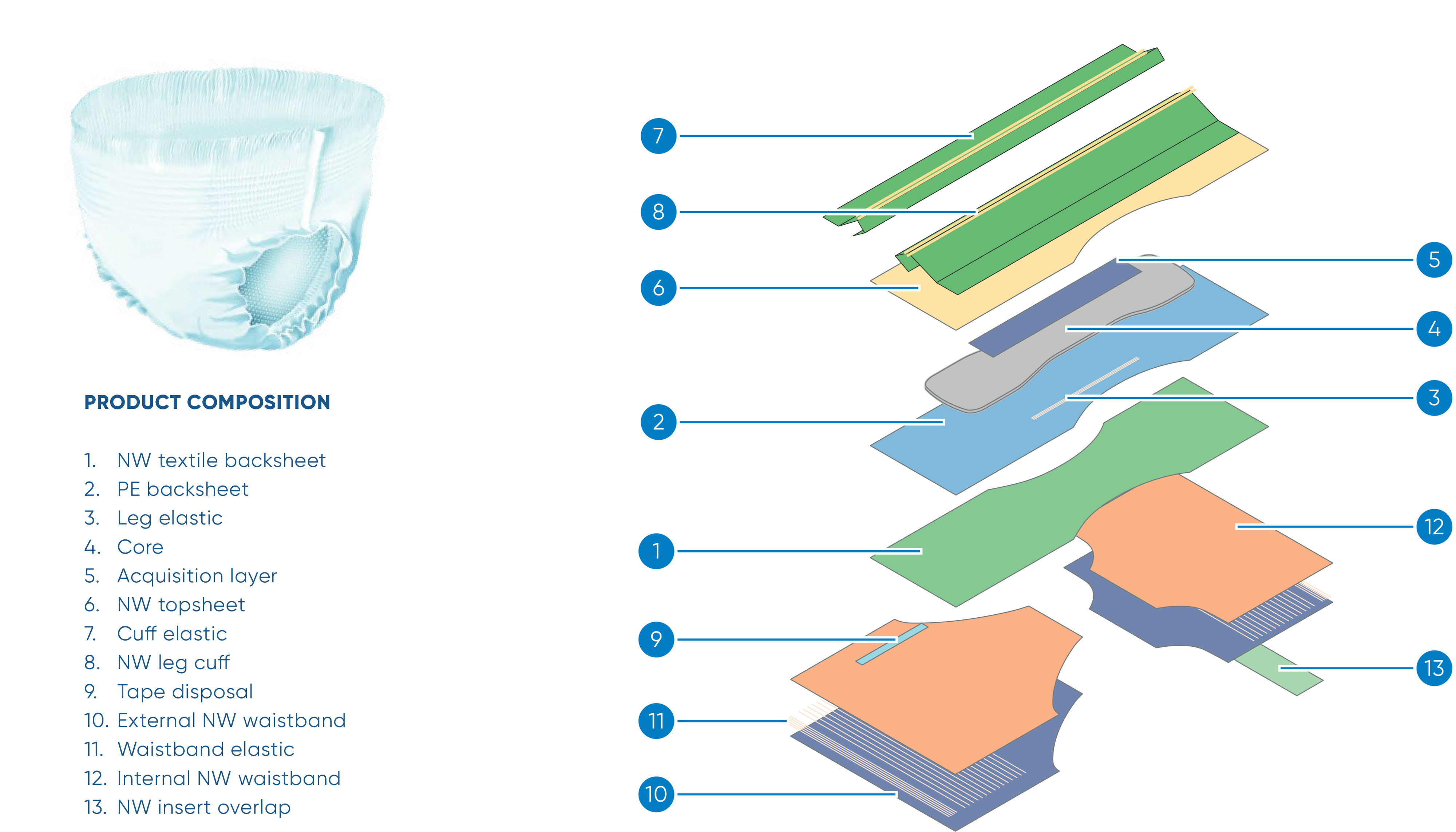

Adult pant content items and composition
© ANDRITZ

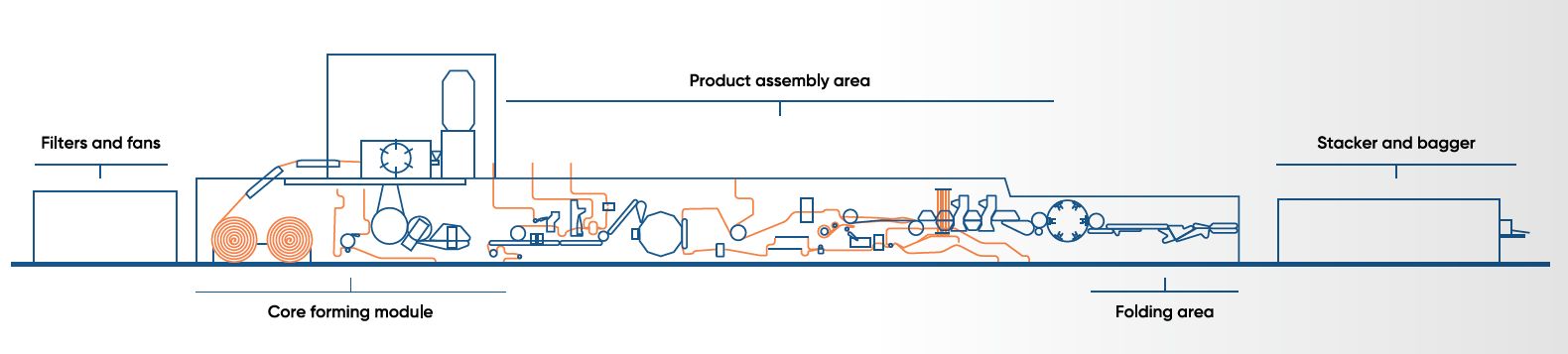

adult pant eXcelle schematic example
© ANDRITZ
