ANDRITZ Reject Compactor ReCo

Dewatering of rejects to highest dryness

Rejects from recycled fiber lines are quite wet when they leave the process, with a lot of free water and water stored in the fibrous material. While free water is relatively easy to remove, the water in the fibers is more critical. Considerable force is needed to achieve an acceptable dry content in the material. However, the higher reject consistencies also help save on drying and disposal costs.

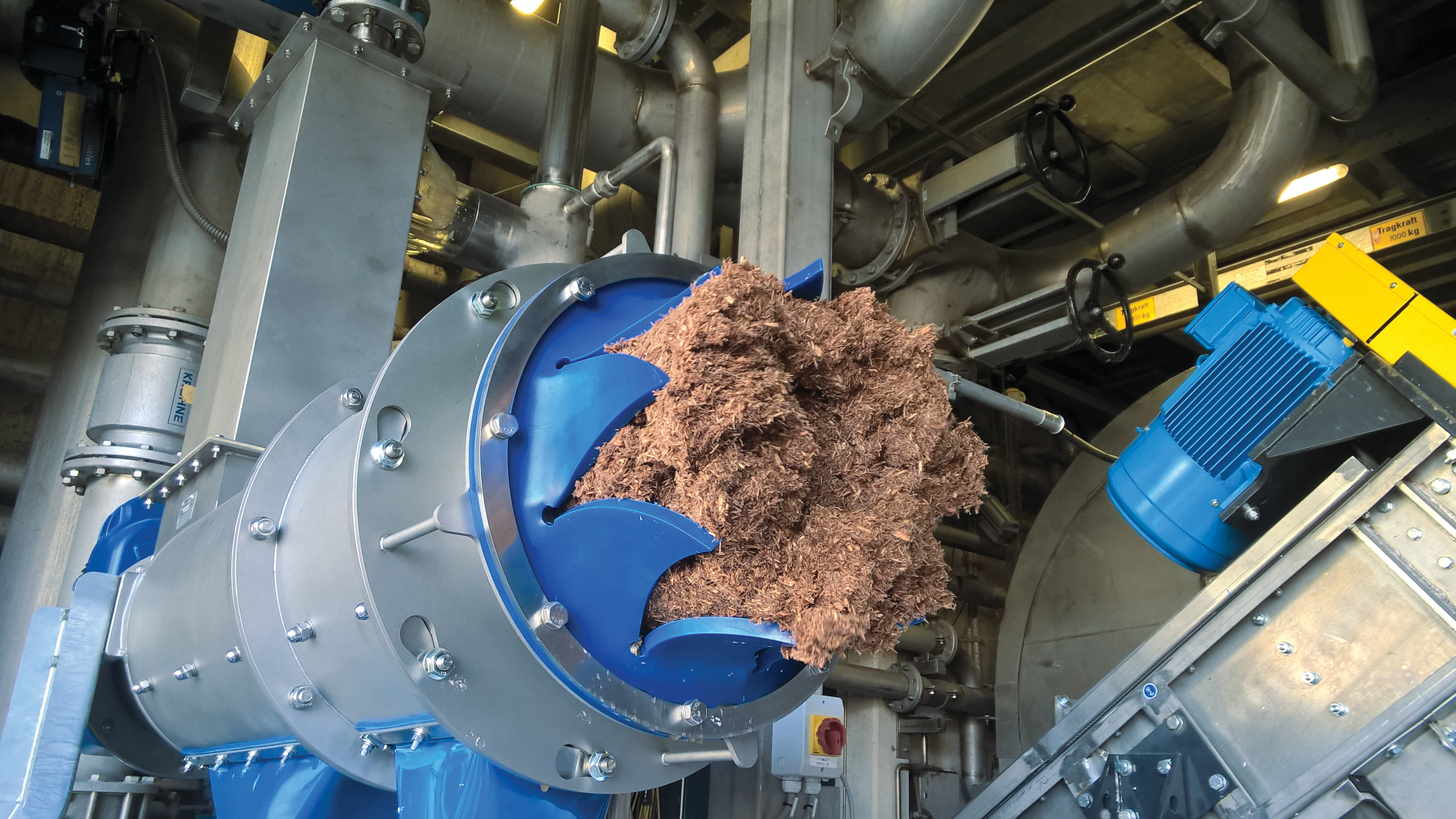

The Reject Compactor ReCo is a robust screw press for dewatering fiber-containing rejects. It is best suited for rejects from

  • drum pulping and conventional pulping systems - ReCo-C (coarse rejects, big plastic portion, higher consistency)
  • fine screening and DAF - ReCo-F (finer rejects, high fiber content, low consistency)

Reject Compactor ReCo-C

recycling-coarse_rejects-recycled-fiber-lines

Typical coarse rejects are:

  • Pieces of plastic and plastic films, undissolved paper (light)
  • Stones, pieces of metal (heavy)

Typical fine rejects are:

  • Fibers, stickies, wax (light)
  • Sand, glass, small pieces of metal (heavy)

ANDRITZ Reject Compactor

The Reject Compactor ReCo is available in three different models:

  • ReCo-C: for coarse pulping rejects with higher consistencies, typically 10-45%
  • ReCo-F: for fine rejects with higher fiber content and consistencies down to 1.5%
  • ReCo-L: light design with smaller capacities for fibrous rejects and/or consistencies as low as 0.8%; discharge consistency up to 35%

Benefits: ANDRITZ Reject Compactor

1. Screw

  • Sturdy two-flight screw for even distribution of forces
  • Wear-resistant hard facing
  • Exchangeable high-pressure front end for easy maintenance

2. Screen basket

  • Modular heavy-duty screen baskets with replaceable screen plates
  • High wear resistance
  • Octagonal design (ReCo-C) or circular shape (ReCo-F)

3. Counter-pressure device

  • Pressure hatches are opened or closed to optimize the compression level
  • Fast reaction time to avoid machine plugging

ANDRITZ Ballistic Separator ReBal

Efficient removal of bulky waste compounds.

Read more

ANDRITZ Sediment Separator ReSed

Efficient removal of sand or other heavy solids from liquids.

Read more

Find out more...

Recycled fiber production

We deliver complete production lines or individual components for the recycling of packaging grades or fibers containing...

Read more

Reject treatment

Converting industrial waste into valuable resources and energy

Read more
