100 % Redundancy

Paraiso, Guaca, Betania - Colombia

EMGESA S.A.E.S.P from the ENEL Group has granted a contract to supply seven out of nine governors for the Paraiso, Guaca and Betania hydropower plants to ANDRITZ Hydro Colombia.

© Craigie Aitchison / Adobe Stock

The three hydropower plants are located in the center and south-east of Colombia and are strategically important for the generation capacity of the customer. HPP Paraiso and HPP Guaca have three vertical Pelton turbines each with a total capacity of 276.6 MW and 324.6 MW, respectively. HPP Betania has three vertical Francis units with a total capacity of 540.9 MW.

For ANDRITZ Hydro the contractual scope is to rehabilitate the governor system, including new governors for the seven units, replacement of hydraulic power unit instrumentation, and speed measuring devices. The contract also includes integration with the existing SCADA system, as well as installation, commissioning, and training. A major objective of this project is to accomplish primary regulation according to the CREG 25 code of Colombia.

Due to the high concentrations of hydrogen sulfide at HPP Paraiso and HPP Guaca, a high efficiency air filtration system has been considered for each electrical cabinet to keep the electronics safe.

Unit #1 of both HPP Betania and HPP Paraíso have been successfully installed. During commissioning, complete redundancy tests were carried out, verifying that the system has 100% redundancy. Integration of the new hydraulic system surpassed the expectations of the client after new hydraulic blocks for the distributor valve and the deflectors for the Pelton units were installed. The original lever-driven feedback governors were replaced by state-of-the-art electronic governors. During the fingerprint vibration measurement, the maximum over speed for load-rejection in the Pelton unit was 106% after the new implementation. This compares with 112% prior to the upgrade.

Currently, the assembly of unit #2 at HPP Paraiso and unit #3 at HPP Guaca is ongoing. Commissioning of unit #2 of HPP Guaca and units #2 and #3 at HPP Betania are scheduled for 2018.

With the successful execution this project ANDRITZ Hydro Colombia strengthens its market position for governor modernization in Colombia.

TECHNICAL DATA

HPP Paraiso
Output:  3 x 92.2 MW
Head:  865 m
Voltage: 13.8 kV
Speed: 514 rpm
HPP Guaca
Output:3 x 108.2 MW
Head:1,015 m
Voltage:13.8 kV
Speed:514 rpm
HPP Betania
Output:3 x 180.3 MW
Head:72 m
Voltage:13.8 kV
Speed:128 rpm

Author: Diana Rodriguez

Next article

Boosting Bolivia's Goal - San Joseé 1 and 2, Bolivia

Read more

List of all articles

Overview of content in HYDRO News 32.

Read more
Contact us
HYDRO News Editorial Office
Eibesbrunnergasse 20
1120 Vienna
Downloads

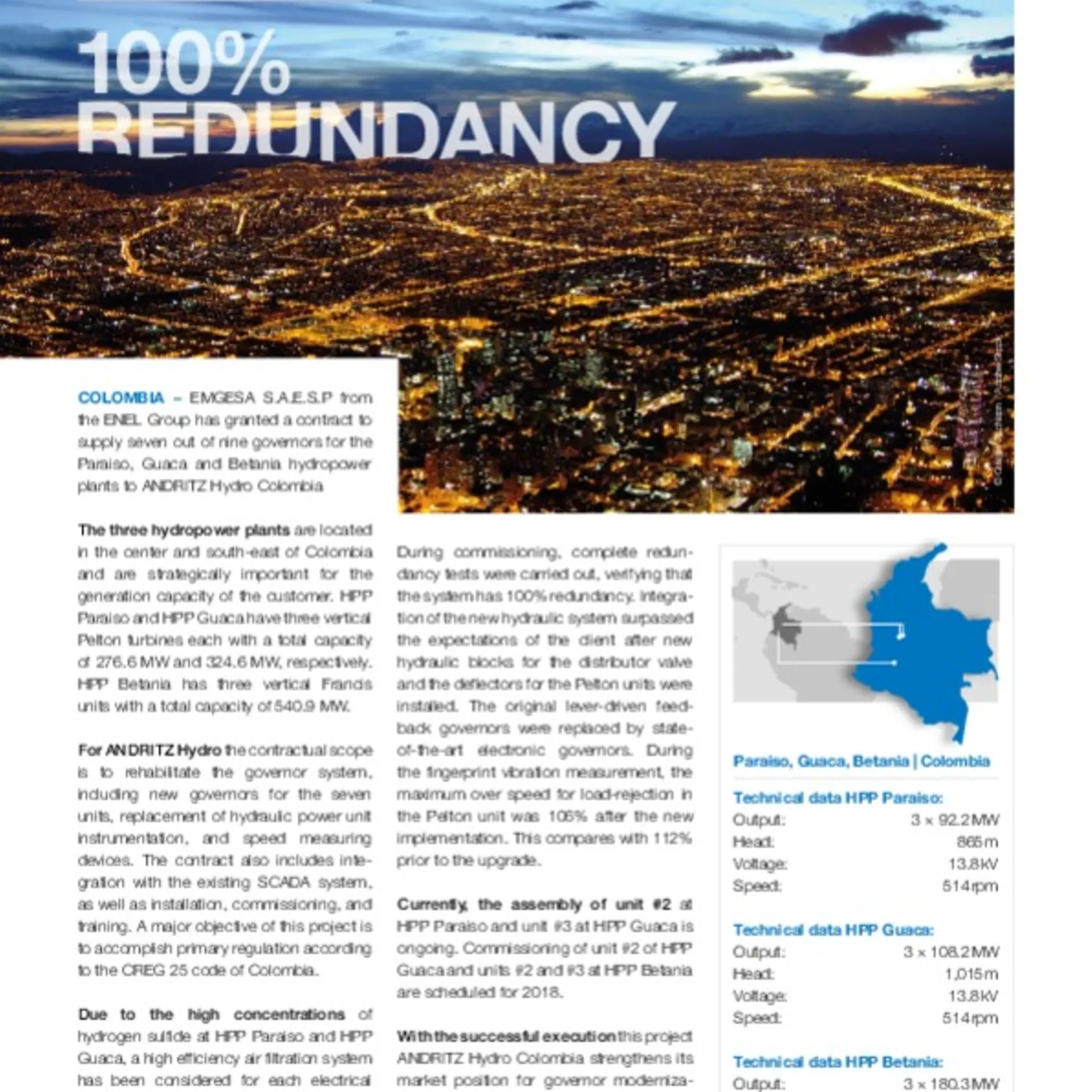

  • Paraiso, Guaca, Betania - Colombia PDF : 368 KB
