  • Low-consistency refiner plates

LemaxX and LemaxX Signature – at the cutting edge of modern refining

Low-consistency refining is an essential step in paper manufacturing.

In order to achieve the desired fiber quality development most efficiently and uniformly, ANDRITZ offers targeted and convincing refining solutions.

Since fibrous material, produced from wood either chemically or mechanically (high consistency refining), is generally in need of further development to be suitable for the demands of current paper consumers (i.e. sheet forming, flock formation, sheet strength, etc.), fibers are treated mechanically. In order to achieve the desired fiber quality development most efficiently and uniformly, the fibrous material is subjected to targeted shear and compressive forces in the gap between rotating and stationary refining elements (bars).

With 20 years of systematic research and development work on the art of refining the ANDRITZ team has been able to improve the efficiency and quality of refining significantly. Three essential innovations have led to groundbreaking benefits.

LemaxX 100 with spiral bars

Spiral bars

To ensure consistently high quality in the processing of fiber material, any form of process variability should be minimized. Research shows that bar angle significantly influences refining results. Yet the crossing angle of parallel bar plates varies significantly. So we asked ourselves, "Can the shape of the bars be optimized to provide more homogeneous fiber treatments?"

Solution

We gave the bars the shape of logarithmic curves. At any point, the fibers on the refiner plate are therefore refined at a constant crossing angle.

Advantage

Homogenous fiber treatment and quality

LemaxX 200 with V-shaped groove

V-shaped groove

For minimal costs and set-up times, refiner plates are expected to have a long service life. But refining action and occasional tramp materials demand high toughness alloys, which naturally have lower wear resistance. So we asked ourselves how we could use highly abrasion-resistant alloys as a plate material that would also withstand the high mechanical load on the bars.

Solution

We strengthened the bars at the base on one side. Two bars together form a V-shaped groove. The grooves between them are deeper and compensate for the hydraulic losses of the V-shaped grooves.

Advantage

High durability / long service

LemaxX Signature with regulating dams

Strategically placed dams

High process quality is expected with increasingly efficient use of energy. We asked ourselves how refiner plate design could contribute towards saving energy.

Solution

We developed refiner plates with strategically placed dams to prevent back-flow of fiber material inside the stator. This drastically reduces hydraulic losses and thus, power consumption. At the same time, we can now regulate the flow capacity by placing dams correctly in the rotor plate.

Advantage

Reduced energy costs

Combining design benefits

Combine different plate designs on rotor and stator with the LemaxX Combinator App!

Find out more ...

Automation for the pulp and paper industry

Optimization, data analysis, augmented reality

Read more

Our service

Comprehensive service to support customer processes: from replacement parts to complete mill maintenance...

Learn more about our service
Contact us
ANDRITZ Fiedler GmbH
Germany
Get in contact
ANDRITZ Inc.
USA
Phone: +1 (570) 546 8211
Get in contact
Download
  • pp-service-refinerplatesfillings-lemaxxsignature-en.pdf
    LemaxX and LemaxX Signature PDF : 766 KB

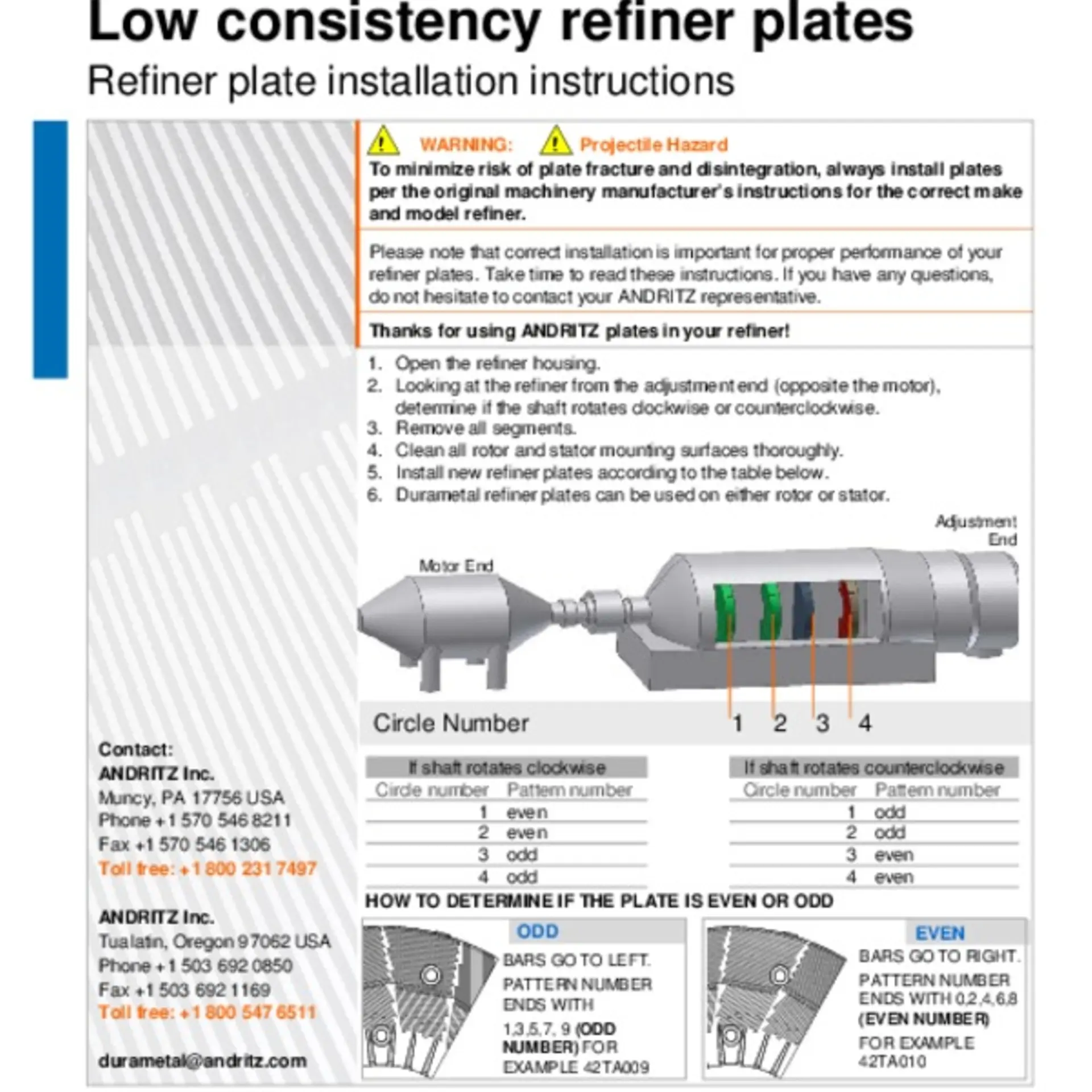

  • LC refiner plates installation instruction PDF : 255 KB
