Innertkirchen 3, Switzerland

More power for Grimselstrom - Small & Mini Hydro

Since the end of 2016 a new hydropower plant has been producing a further 11.5 GWh of electrical energy per year for the Canton of Bern in Switzerland.

Kraftwerke Oberhasli AG (KWO) awarded an order to ANDRITZ HYDRO for the supply of electro-mechanical equipment for the hydropower plant Innertkirchen 3 in September 2014.

KWO was founded in 1925 in order to exploit the hydraulic potential in the Grimsel/Susten area for the production of electrical ­energy. With a total of nine power plants, eight storage lakes, and an installed turbine capacity of 1,368 MW, KWO produces about 2,350 GWh of renewable electrical energy annually.

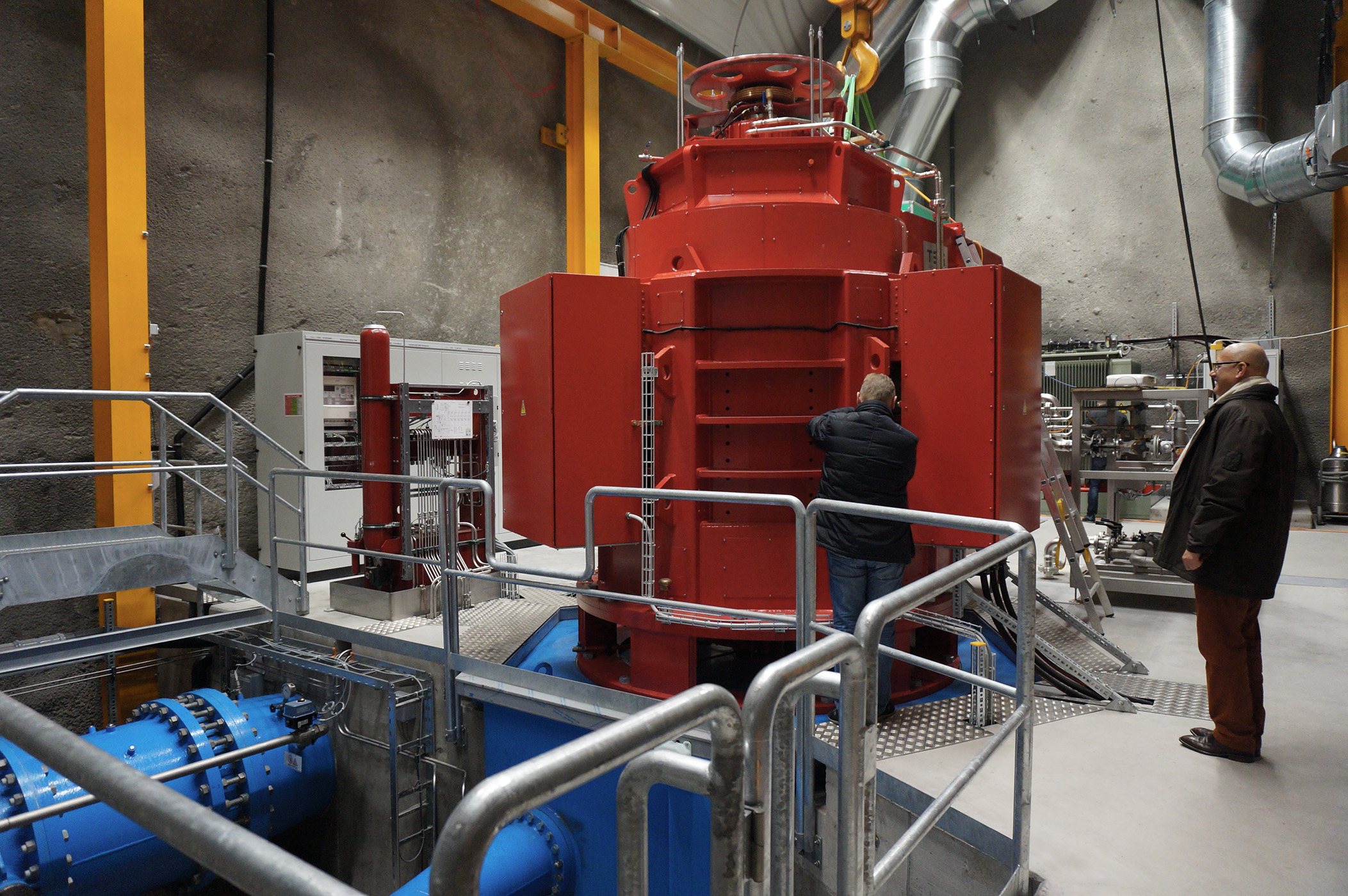

HPP Innertkirchen 3 is operated as a run-of-river power station, with only a small pondage, but without reservoir management. The scope of supply comprised installation and commissioning of a vertical, six-jet 3.2 MW Pelton turbine, including governor, a 3.5 MVA generator, cooling water system, and main inlet valve (DN 1000, PN 16).

TECHNICAL DATA

Total output: 3.2 MW
Scope: 3.2 MW
Voltage: 6.3 kV
Head: 131 m
Speed: 430 rpm
Runner diameter: 1,070 mm

Author: Ralph Zwingli

Next article

Luachimo, Angola

Read more

List of all articles

Overview of content in HYDRO News 31

Read more
Contact us
HYDRO News Editorial Office
Eibesbrunnergasse 20
1120 Vienna
Downloads

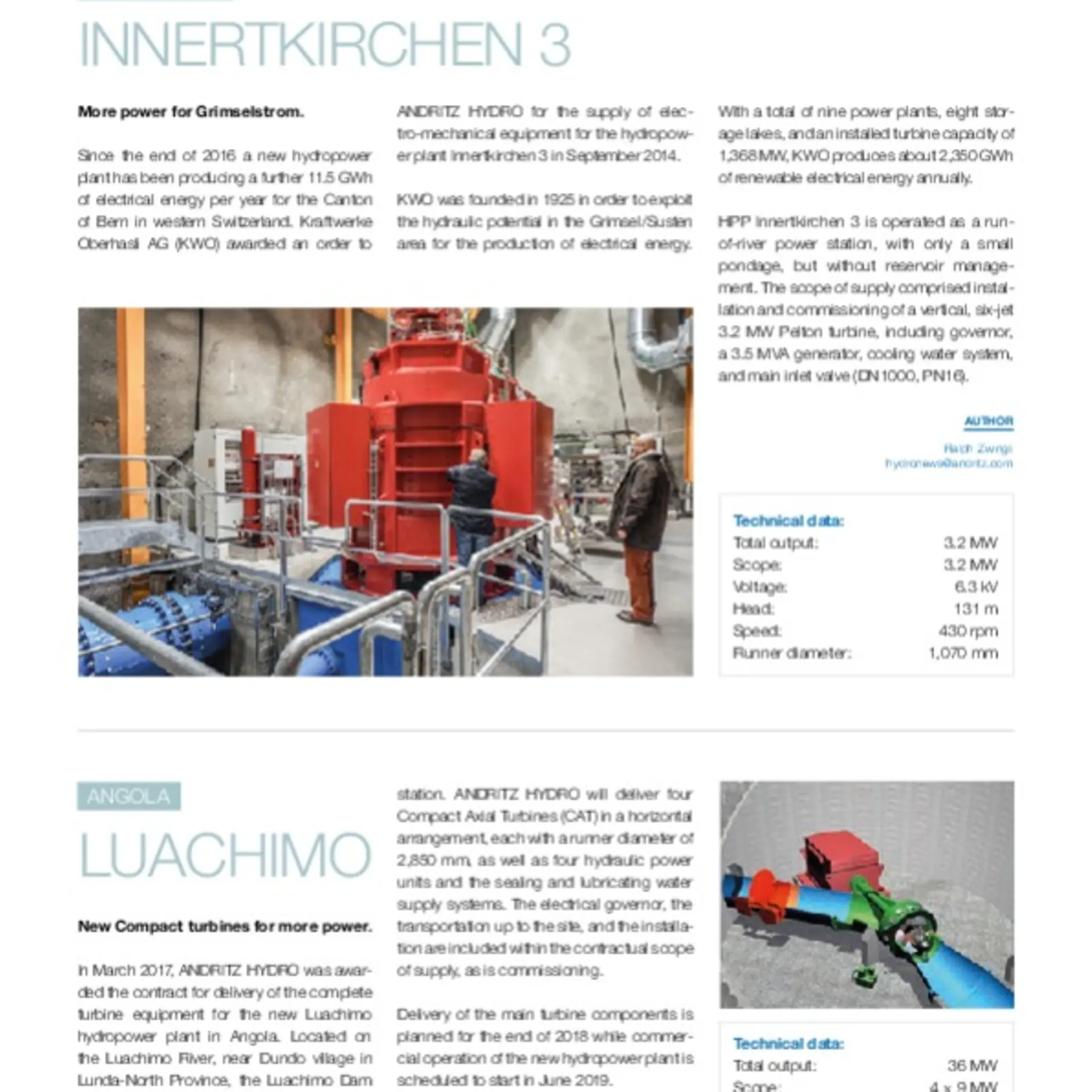

  • Innertkirchen & Luachimo PDF : 141 KB
