Dry Molded Fiber: Mold your ideas into sustainable growth

ANDRITZ Dry Molded Fiber solutions for a wide range of plastic replacement and more sustainable packaging

ANDRITZ delivers innovative Dry Molded Fiber technology that transforms pulp into solid packaging and single-use products without the need for water. This offers a range of sustainability benefits, including energy efficiency, a reduced carbon footprint, and minimal water usage compared to traditional wet molding and plastic alternatives.

Dry Molded Fibers benefits

  • 95% less water consumption compared to wet molding
  • Biodegradable products ensure a reduced carbon footprint
  • Efficient energy utilization, thanks to a shorter production time and the cutting out of drying sections
  • ANDRITZ as a single source for complete lines
  • With the neXline DMF aXcess, eXcellle and eXcelle pro, we deliver lines for pilot as well as industrial solutions
Lids, cutlery or packaging. ANDRITZ offers solutions for all end applications.

PulPac cooperation

To guaranty the best performance possible, ANDRITZ cooperates with the technology partner PulPac. This partnership combines PulPac’s Dry Molded Fiber technology with ANDRITZ’s expertise in turnkey pulp mills and web forming processes as well as converting and recycling technologies.

As a result, we are now able to offer complete Dry Molded Fiber lines, further expanding the broad portfolio of sustainable solutions.

© PulPac

Sustainable approach

adobe stock 898009589

Dry Molded Fiber represents an innovative approach to manufacturing fiber-based products. This technique drastically reduces water and energy consumption compared to conventional fiber-forming methods. By utilizing a dry process, production speeds are up to ten times faster with up to 80% lower CO2 emissions.


These efficiencies make fiber-based alternatives more economically viable compared to plastic packaging, driving their adoption in the industry.


ANDRITZ focuses on producing coffee lids and lids for cold drinks using Dry Molded Fiber technology, while also following the needs of the medical and packaging sectors.

pic-dry-molded-fiber-pilot-line_nonwoven-and-textile

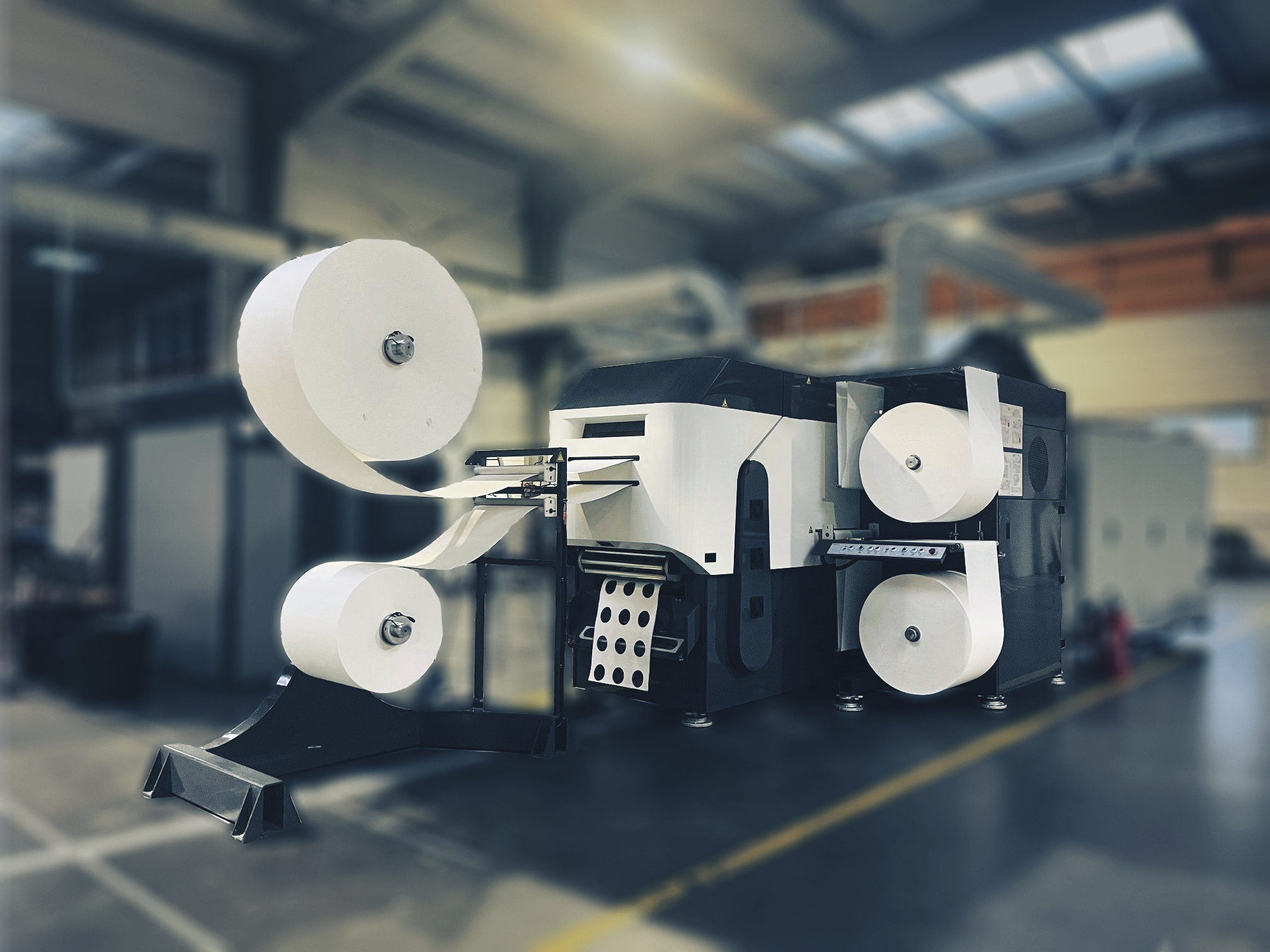

Test with the experts

At our test facility in Montbonnot, France, we provide the equipment for you to conduct trials and test your process and product parameters, or even create completely new products, thus helping you to maximize your investment.

Dry Molded Fiber line with airlaid forming

Dry Molded Fiber line with a mill to web unit

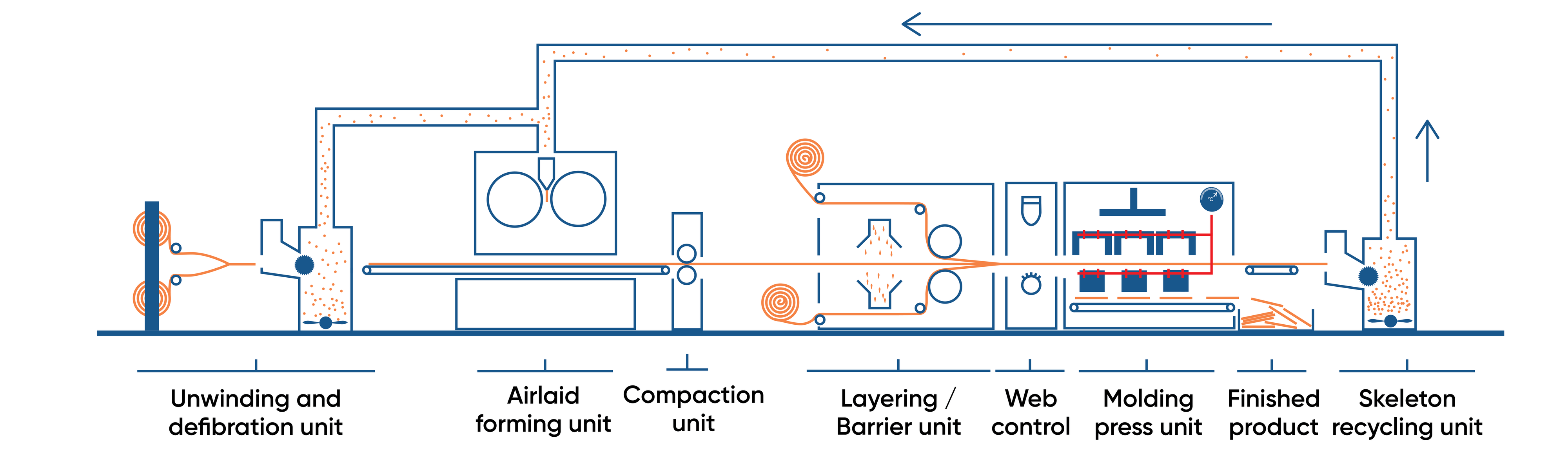

Airlaid forming

The ANDRITZ neXline DMF eXcelle pro line with an airlaid forming unit includes proven and unique drum forming technology.

This state of the art process is based on rotating, perforated drums that are fed with a fiber mixture. The rotation of the drums in combination with the internal rotating needle rolls creates a fluidized stream of fibers inside the drums. The fiber or fiber mixture is extracted from the drums by a vacuum underneath the forming drums and placed on a wire to produce a uniform web.

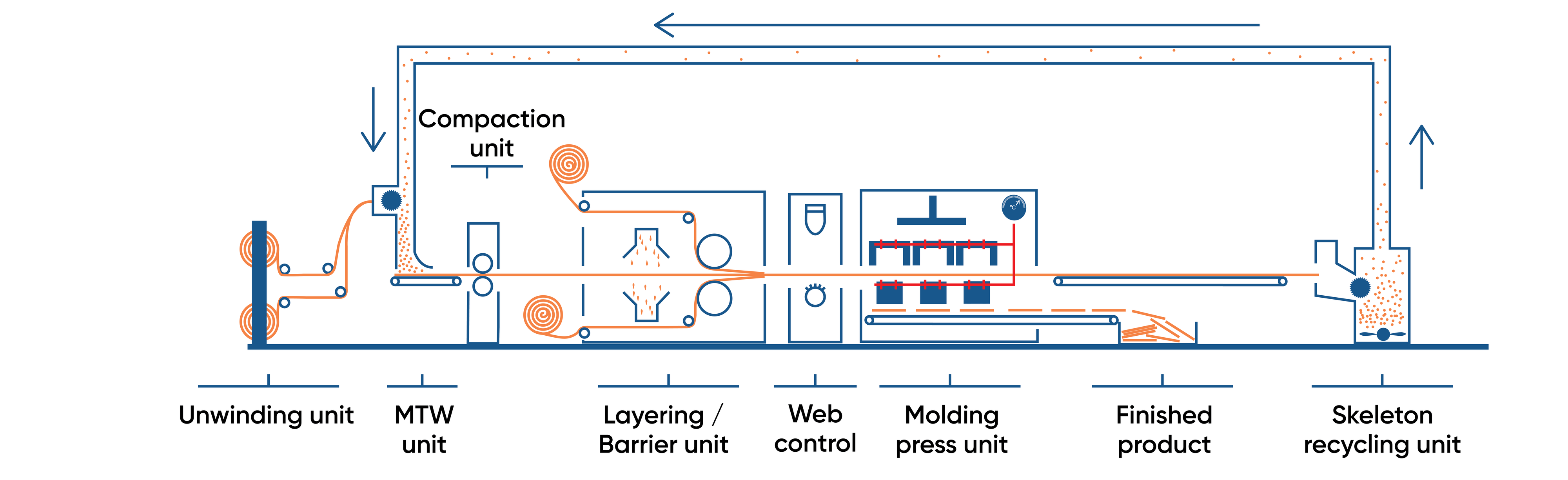

Mill to web forming

ANDRITZ also offers the alternative neXline DMF aXcess and eXcelle lines with a mill to web unit instead of an airlaid forming unit. This mill to web forming is a cost-optimized, all-in-one solution.

The neXline DMF aXcess is designed for smaller production volumes and it is more compact, which makes it space-efficient. On the other hand, the eXcelle alternative is built for higher production volumes, which is why it requires more space. The aXcess line has lower initial investment costs, while eXcelle offers higher flexibility with its modular technology.

Airlaid unit

ANDRITZ neXline DMF eXcelle pro

  • Annual productivity: 850 tons (lids)


  • Raw material: Pulp roll 900 mm +


  • 40 cold lids at a time
Mill to web unit

ANDRITZ neXline DMF eXcelle

  • Annual productivity: 510 tons (lids)


  • Raw material: Pulp roll 600 mm


  • 24 cold lids at a time
Mill to web unit

ANDRITZ neXline DMF aXcess

  • Annual productivity: 190 tons (lids)


  • Raw material: Pulp roll 490 mm


  • 9 cold lids at a time

Comprehensive Service

Our comprehensive SYNERGY™ services include co-development for optimized mold, advanced curing processes, and barrier technologies. With access to process experts and specialized training programs, we ensure that our clients receive ongoing support for all their needs.
