ModuScreen coarse screening

Screening and cleaning in a single unit

ModuScreen F: a multi-use screen

The ModuScreen F is a multi-use screen which can serve as a coarse screen or as a high- and low-consistency fine screen. The ModuScreen F is delivered with a rotor and screen cylinder that is optimized for production requirements, ensuring reliable performance and superior screening efficiency. Screening consistency can range from 1–5% depending on the application.

Features of the ModuScreen F

  • Rugged mechanical design
  • Wide range of cylinder hole/slot sizes
  • Spare parts compatible within ModuScreen product family
  • Fractionator model available

Benefits of the ModuScreen F

  • Optimized rotor/cylinder combination
  • High screening efficiency
  • Trouble-free operation
  • Modular
  • Easy maintenance
  • Optimized screening performance with special dilution rotor (patented)

ModuScreen D: high deflaking performance

The ModuScreen D coarse screen can be installed in recycled fiber processing systems where deflaking is required (e.g. (A)OCC, DLK, etc.). The ModuScreen D performs trouble-free even with high levels of contaminants.


Benefits of the ModuScreen D

  • Tangential feed for lower power requirements
  • Screen plate with wide range of hole sizes
  • High deflaking potential through impact blocks
  • Operation with high feed consistencies possible
  • Continuous reject flow
  • Wear-protected rotor and wear stripes on screen plates
  • Heavy reject removal with directly connected junk trap
  • Conical shaped housing for reduced wear

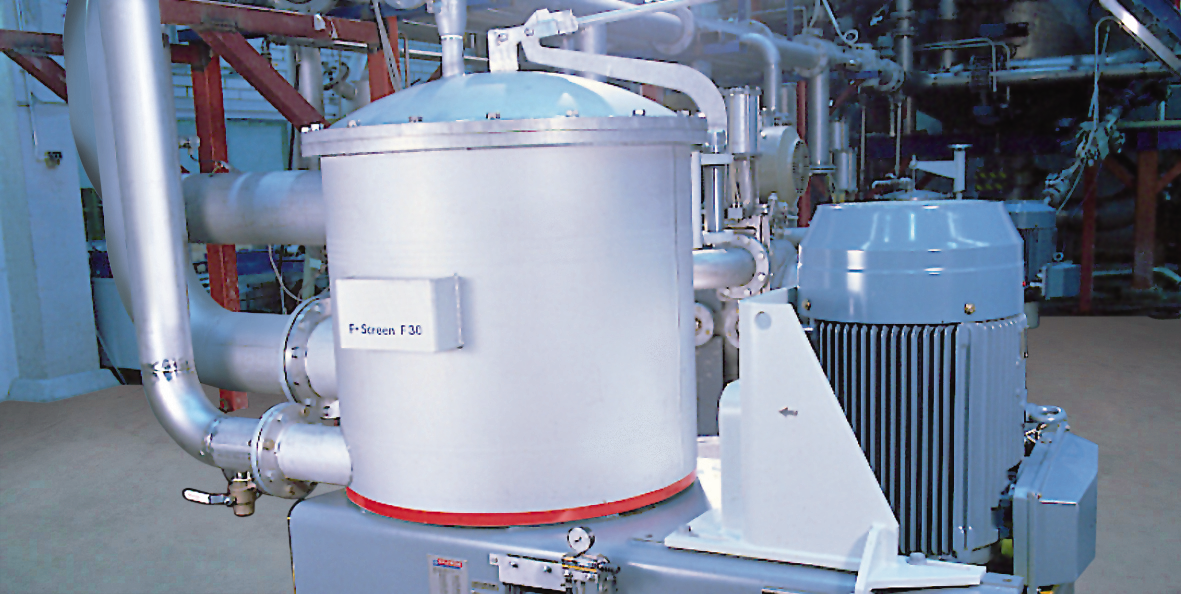

Coarse screening ModuScreen F

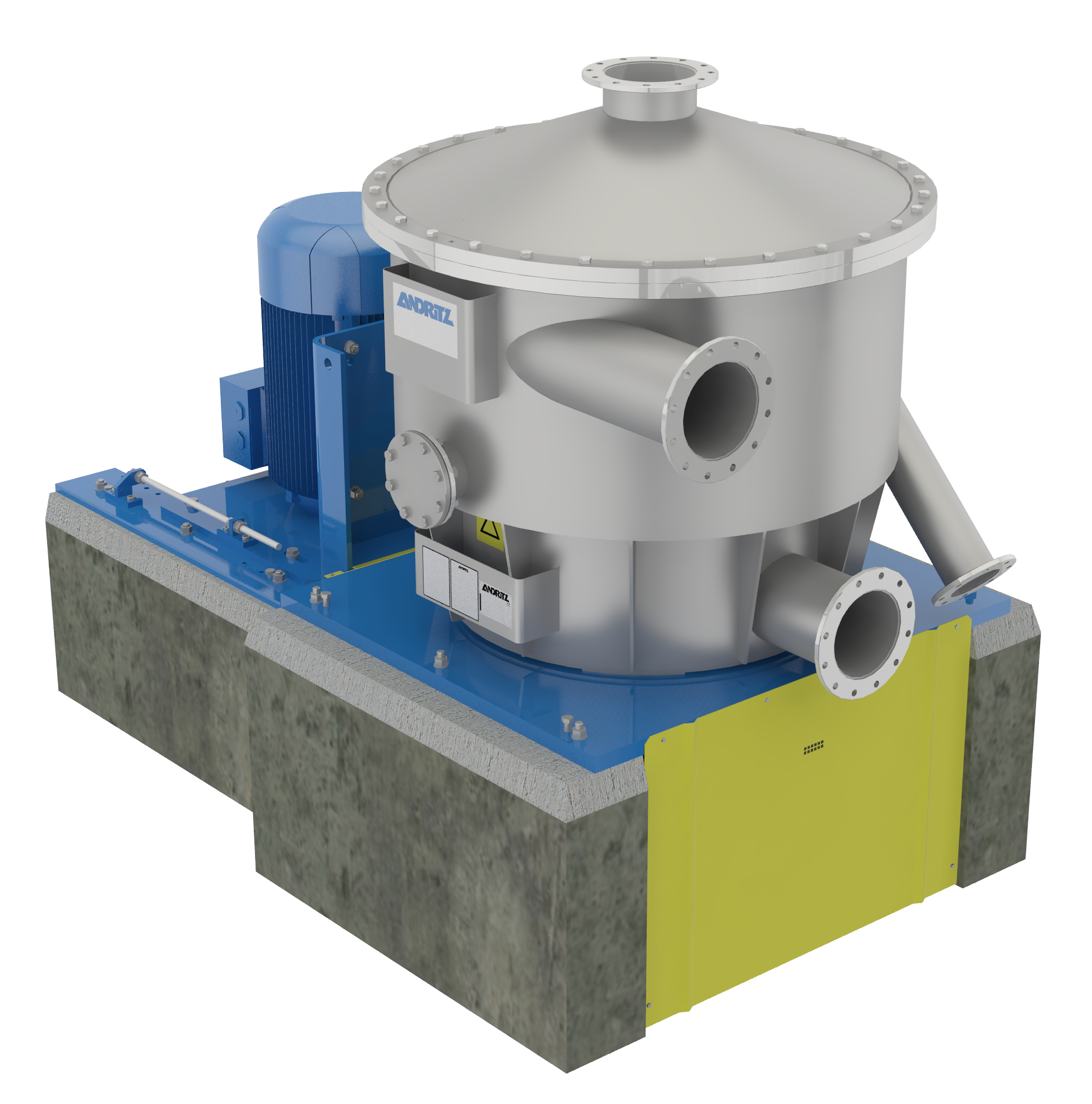

Coarse screening ModuScreen D

ModuScreen CR

The ANDRITZ ModuScreen CR screen removes heavy particles from recycled fiber furnish. The design combines the benefits of a HD cleaner and conventional coarse screening in one unit. Using this screen allows a mill to install fewer pieces of capital equipment, fewer tanks and pumps, less piping, and fewer valves and instrumentation. Typically, the ModuScreen CR is applied in recycled fiber lines, but it can also be applied in other papermaking applications.

The ModuScreen CR is an inflow type screen and uses stationary foils located inside the cylinder and a rotating screen cylinder. Its unique rotating screen cylinder elevates the ModuScreen CR to be the optimum technical solution for coarse screening today. The foils are only in contact with the accept pulp stream and not with the contaminants. This results in excellent screening performance, low power consumption, and a longer, more reliable life.

Features of the ModuScreen CR

  • Rotating screen cylinder
  • Inflow design
  • Stationary foil in accept compartment
  • Intermittent removal of heavy contaminants
  • Continuous / intermittent removal of light contaminants
  • Junk trap section separated from the screen body

Benefits of the ModuScreen CR

  • Low maintenance costs

  • Low energy consumption

  • Gentle screening process
  • Excellent efficiency, removing large impurities
  • Continuous, automatic operation with simple process control
  • Efficient fiber/reject separation – minimum fiber losses

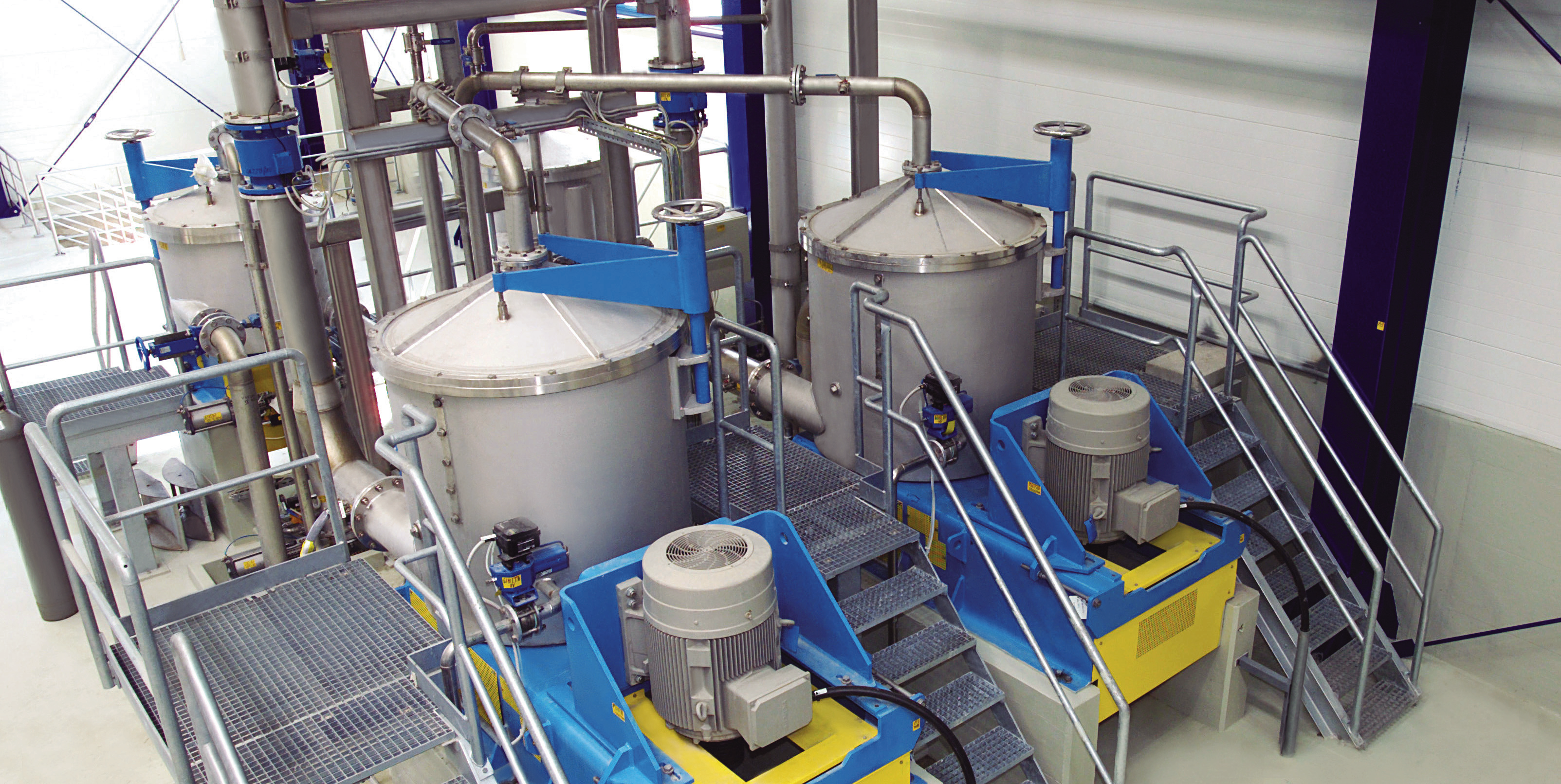

Coarse screening ModuScreen CR
