Machinery by ANDRITZ Kft., Tiszakécske

Manufacture and machining of equipment by ANDRITZ Kft. guarantee high technical standards and excellent quality

hy-image-machinery-3

Vertical turning lathe 6300

ANDRITZ Kft. has continued to enhance the productivity and capacity of its machines. Today it can cover the entire technical portfolio:

Machinery

Main dimensions

CNC-controlled flame and plasma cutter

Water cutter
Max. cutting thickness: 300 mm (CS); 80 mm (SS)
Max. plate dim.: 5.000*18.000 mm
Max. water cutting thickness: 30 mm
Plate rolling equipment                             Max. width: 3,000- 3,500 mm
Max. thickness: 12-125 mm
Smallest rolling diameter: 300-1,260 mm
Max. rolling diameter: 8,000 mm

CNC-controlled VTLs

Max. work range: Ø 12000 mm
Max. height: 4,500 mm

CNC-controlled HBMs

X axis: 9,000 mm max.
Y axis: 4,500 mm max.
Z axis: 1,600 mm max.
Max. spindle diameter: 250 mm

Laser welding

3pcs laser welder machine
Lenght: 12,000 mm
Width: 2,000 mm

Heat treatment
Portable heat treatment equipment
1st furnace: 5,000 x 5,000 x 10000 mm
2nd furnace: 1,500 x 1,500 x 2,000 mm
Max. temperature: 1,100° C

Shot blasting

Three compartments
15,000 x 8,000 x 8,000 mm each
Blasting by sand and steel shot

Painting booth

Two booths with airless technology
15,000 x 8,000 x 8,000 mm
9,000 x 9,000 x 8,000 mm

Crane capacity

Up to 150 tons

Contact us
ANDRITZ Kft.
Dózsa telep 69
6060 Tiszakécske
Get in contact
Downloads

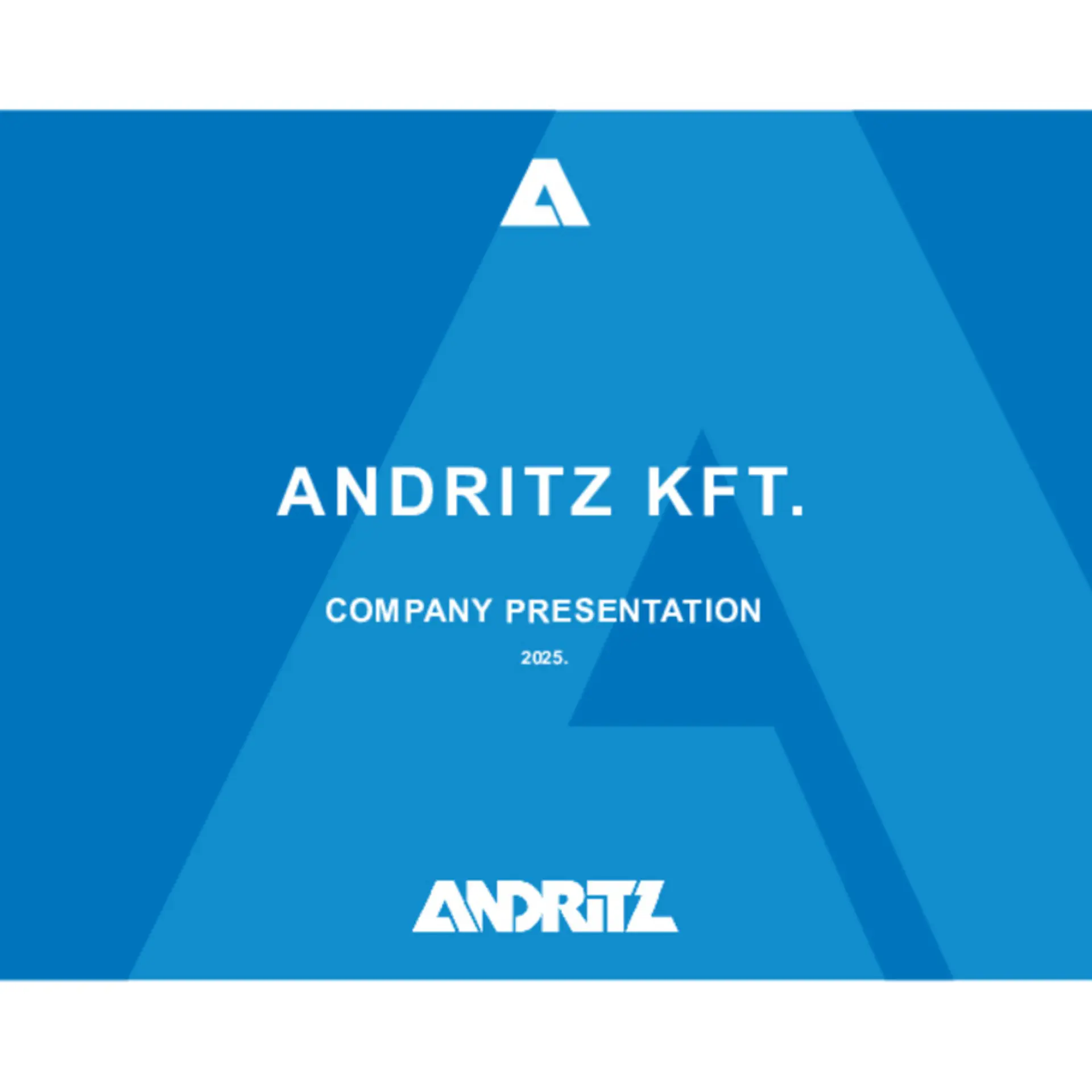

  • ANDRITZ Kft. company presentation PDF : 4.3 MB

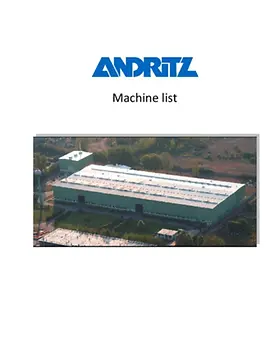

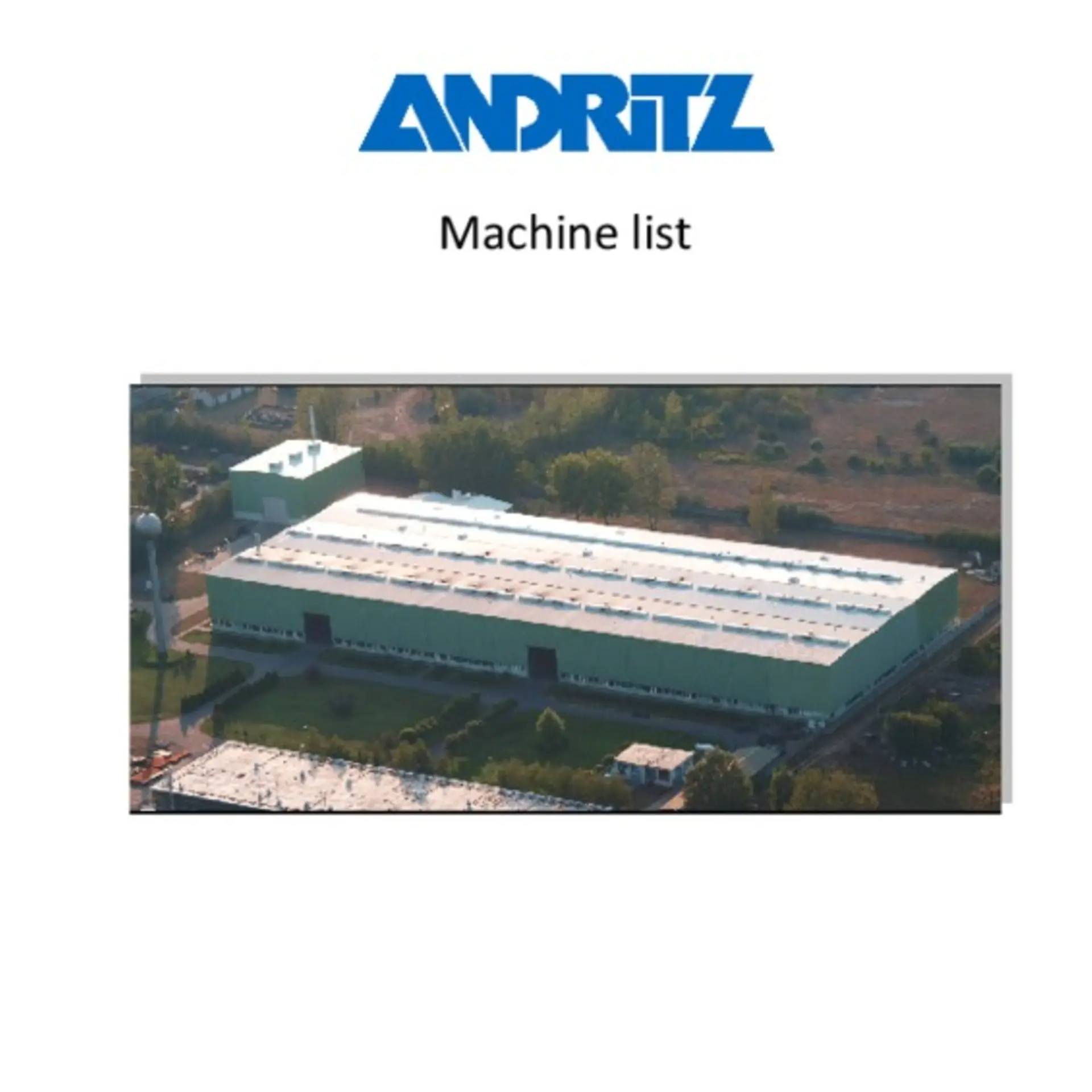

  • ANDRITZ Kft. Machine list PDF : 6.9 MB

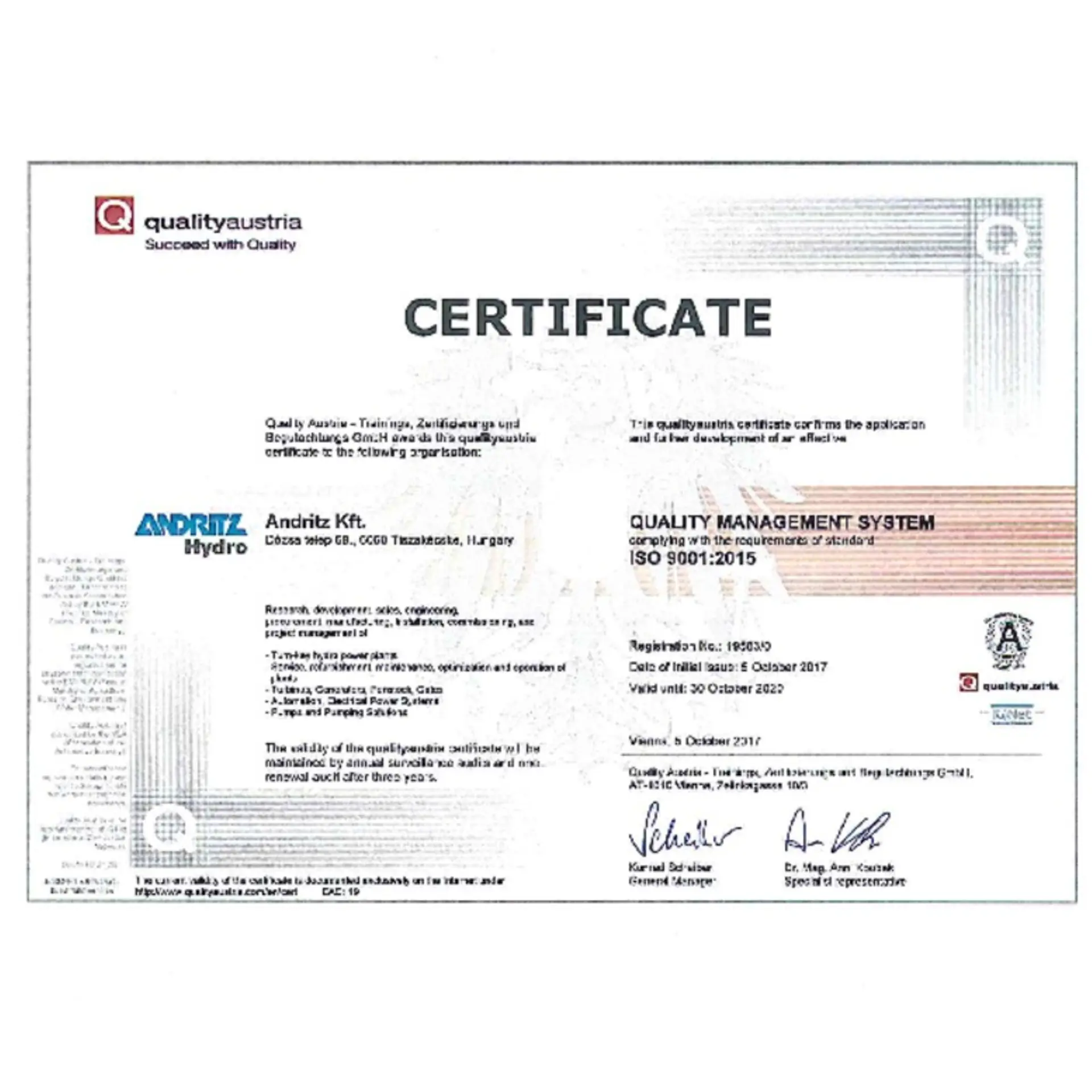

  • ANDRITZ Kft. certificates PDF : 4.9 MB
