Krauss-Maffei dynamic crossflow filter DCF

The Krauss-Maffei dynamic crossflow filter DCF is suitable for the clarification of liquids and for concentrating and washing of solids in a broad variety of chemical and biochemical products. No matter if the valuable products are solids or liquids, the Krauss-Maffei dynamic crossflow filter DCF increases yield and product quality.

Crossflow methods for separating substances with poor filtration properties are state of the art. In chemical applications with solvents, abrasive materials, and similar, the use of ceramic filter membranes is gaining popularity.

Krauss-Maffei dynamic crossflow filter DCF

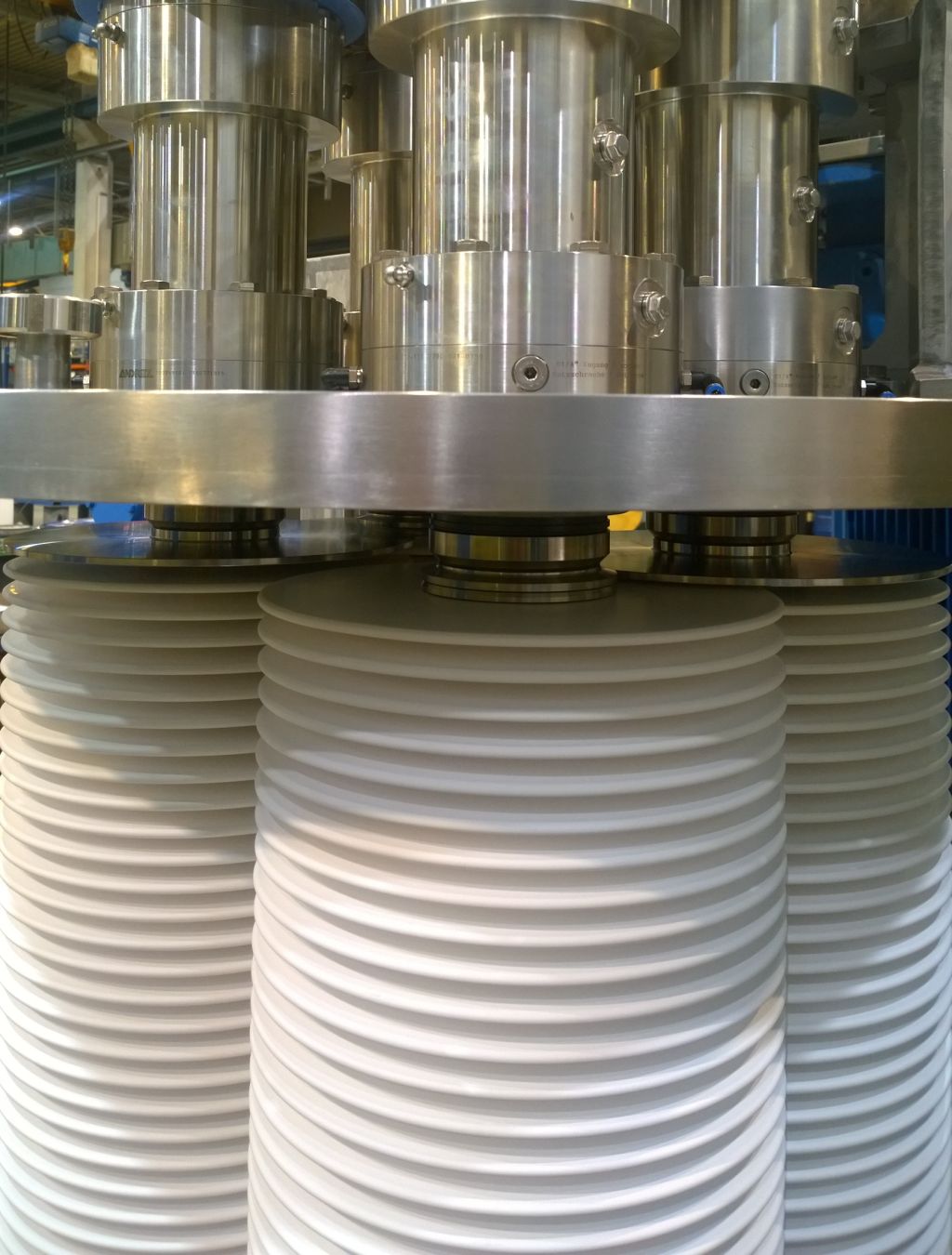

Ceramic membranes with overlap

Process know-how and innovation for the production of insulin

Dynamic crossflow filters have modernized insulin production

Fully automated and enclosed process with Krauss-Maffei dynamic crossflow filters at Novo Nordisk in Denmark

Learn more

Technological advantages

  • Highest possible yields by processing of highly concentrated suspensions up to viscosities of 7,000 mPas
  • Optimum product quality due to single-pass filtration concept, short residence times, no contact with gases, and minimum thermal and mechanical impact
  • Highly accurate membranes with different cut-offs achieve a clear filtrate, typically with residual turbidity of less than 1NTU
  • Smaller installed filtration area due to higher permeate flux
  • 80% reduction in energy consumption compared to traditional membranes
    • Reduced thermal product treatment
    • Lower energy costs
    • Little or no suspension cooling
  • Substantial savings, in any subsequent evaporation or drying
  • Reduced operating costs and wider range of applications
  • Reduced feed pressure due to more effective prevention of clogging layer
  • Homogeneous trans-membrane pressure across the entire surface (no inlet or outlet zones in membranes)
  • Easy inspection as the filtration surface is on the outside of the membrane

Machine benefits

  • Very low retention volume in relation to the membrane surface
  • Hermetic design
  • Designs for basic chemical to high-end, sterile pharmaceutical applications
  • Full CIP and SIP available, GMP enabled
  • Small footprint, easy transport and installation
  • Easy maintenance
  • Hanging shaft design eliminates the risk of gases at the membranes and in the permeate
  • Lowest mechanical stress on product due to minimized process volume
  • Feed bottom and discharge top: easy cleaning due to hygienic design
  • Avoidance of retentate recirculation by means of dead-end operation (single-pass process)


Applications

Chemicals-ANDRITZ-SEPARATION_icons-web-240x184px

Chemicals

Petrochemicals and polymers (latex), mineral oil, pharmaceuticals (antibiotics, injections, insulin), base chemicals, agrochemicals, speciality chemicals, natural rubber and bioplastics, chemical recovery

Food-Text-ANDRITZ-SEPARATION_icons-web-240x184px

Food

Dairy, wine, beer and juices (clarification, removal of fining agents), neutraceuticals and functional ingredients (proteins, enzymes), industrial fermentation (proteins, enzymes, yeast, E. coli), animal processing, bioprocess engineering products (proteins, enzymes, yeast, E. coli)

Processing parameters

Pore sizes membranes/ filters

Ceramic (asymmetric): Ultrafiltration 1–80 nm; microfiltration 0.2–2 µm

Metal: 1–200 µm

Membrane area

0.03–32 m2

Processable viscosity

up to 7,000 mPas

Crossflow velocity

up to 7.3 m/s

Shear stress

up to 140,000 Pa

Operating feed pressure

0-6 bar (isobaric processing possible)

Operating TMP

0.3–2.0 bar (lower than other crossflow technologies)

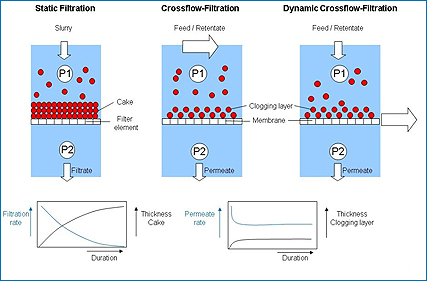

In traditional cross-flow filtration, the development of a clogging layer on the surface of the filter membranes is prevented by pumping the feed. When handling sensitive or highly viscous products, this method is not efficient or not even feasible. In this case, traditional, circulating cross-flow filtration technologies would not be able to concentrate liquids to a highly viscous sludge. As dynamic cross-flow filtration (DCF) is able to concentrate the retentate to a sludgy consistency, the efficiency of the separation process and yield of the valuable compound are higher than from any other cross-flow technology. ANDRITZ KMPT has made further advances in the DCF process.

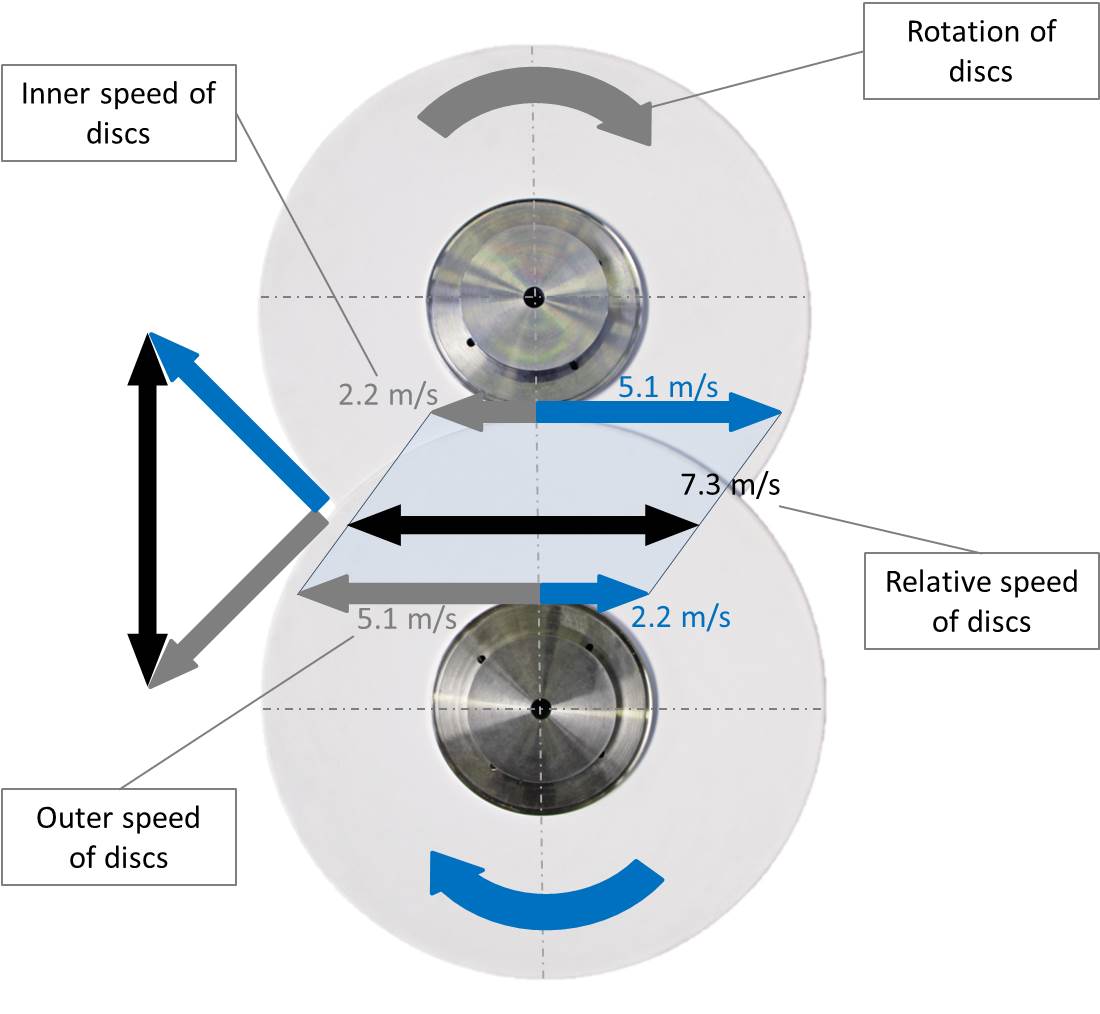

In this technology, overlapping, rotating discs generate a differential speed in relation to one another. This design creates a turbulent crossflow without using a pump to circulate the slurry. By applying wall shear stress that is at least 50% higher than in conventional crossflow systems, the formation of a clogging layer, which obstructs the permeate flow, can be avoided or at least reduced significantly. Ceramic filter membranes are installed as standard, but metal filter membranes can also be installed. Upgrades for existing plants, with a DCF being included downstream of a traditional crossflow filter, enhance the process, reduce energy costs, and increase the throughput. In any event, removal of bottlenecks is often the main reason for installing a DCF, and in some cases, the reduction of energy consumption is motivation enough.

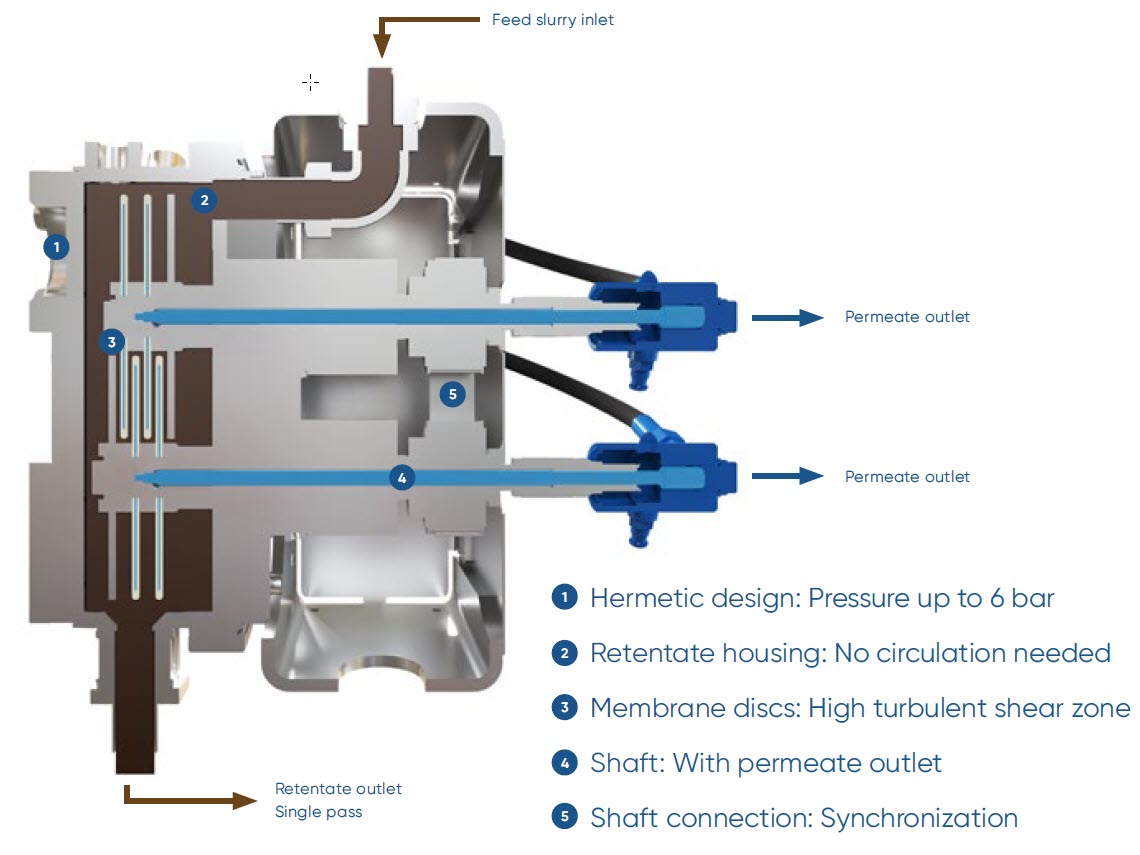

Working principle of DCF

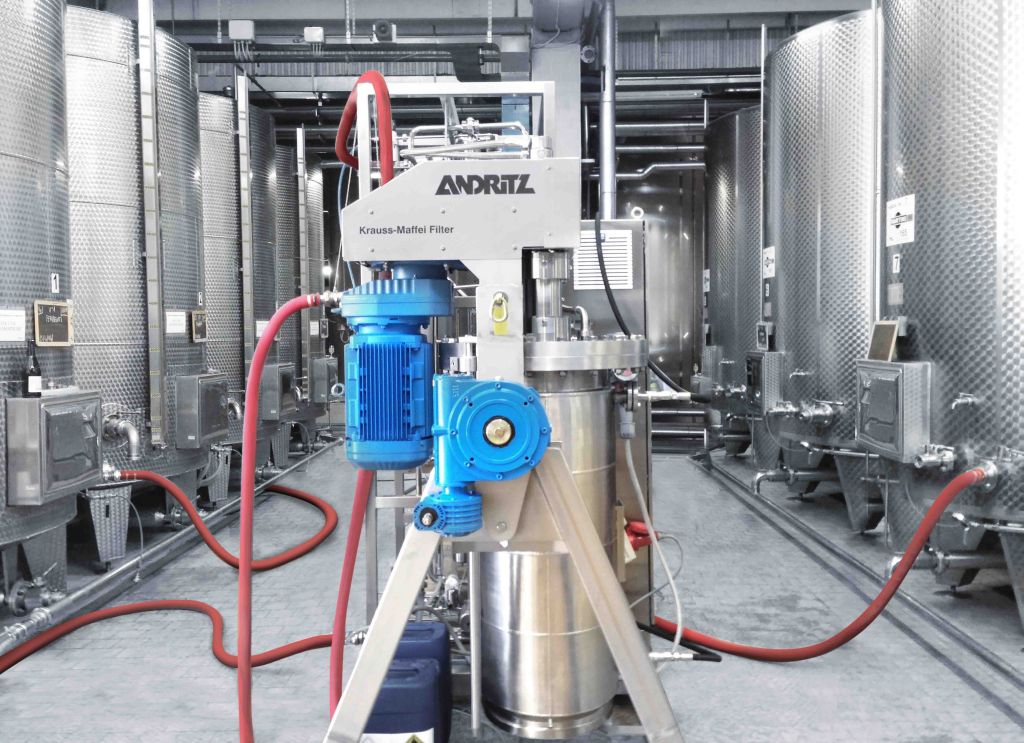

Every drop counts – higher solids concentration, higher yields for recovery of liquids. With its dynamic crossflow filter (DCF), ANDRITZ SEPARATION provides a highly efficient separation solution that fulfills the latest standards and is bridging gaps that common technologies have to bypass. Recovery of tank lees in wineries during vintage or wine purification, for example,  is only one of the various applications of the DCF. It is a smart solution to increase yield, optimize quality, reduce costs, and improve working conditions.

Model



Disk diameter (mm)



Number of membranes



Filter area (m2)



Retentate volume (l)

Length (mm)

Width (mm)

Height (mm)

Operating
weight (kg)

Number of shafts

DCF 152/S15210.030.4500400600301
DCF 152/0,1415240.142.59007005001502
DCF 312/2312162.160/40*1,7001,5001,8001,2002
DCF 312/4312324.2100/60*1,7001,5001,8001,2802
DCF 312/6312486.3130/80*1,3001,5001,9001,3502
DCF 312/8312648.4170/100*1,3001,0002,1001,4002
DCF 312/103128010.5200/120*1,3001,0002,3001,4502
DCF 312/1631212816.4300/180*1,4002,3002,5002,5502
DCF 312/2031216020.53501,4502,4002,5002,9004
DCF 312/2431219224.64001,5002,5002,5002,9004
DCF 312/2831222428.74501,5502,6002,6003.1504
DCF 312/3231225632.85001,6002,6002,6003,4004

*= round/ oval housing available. All technical data are approximate and subject to change without notice.

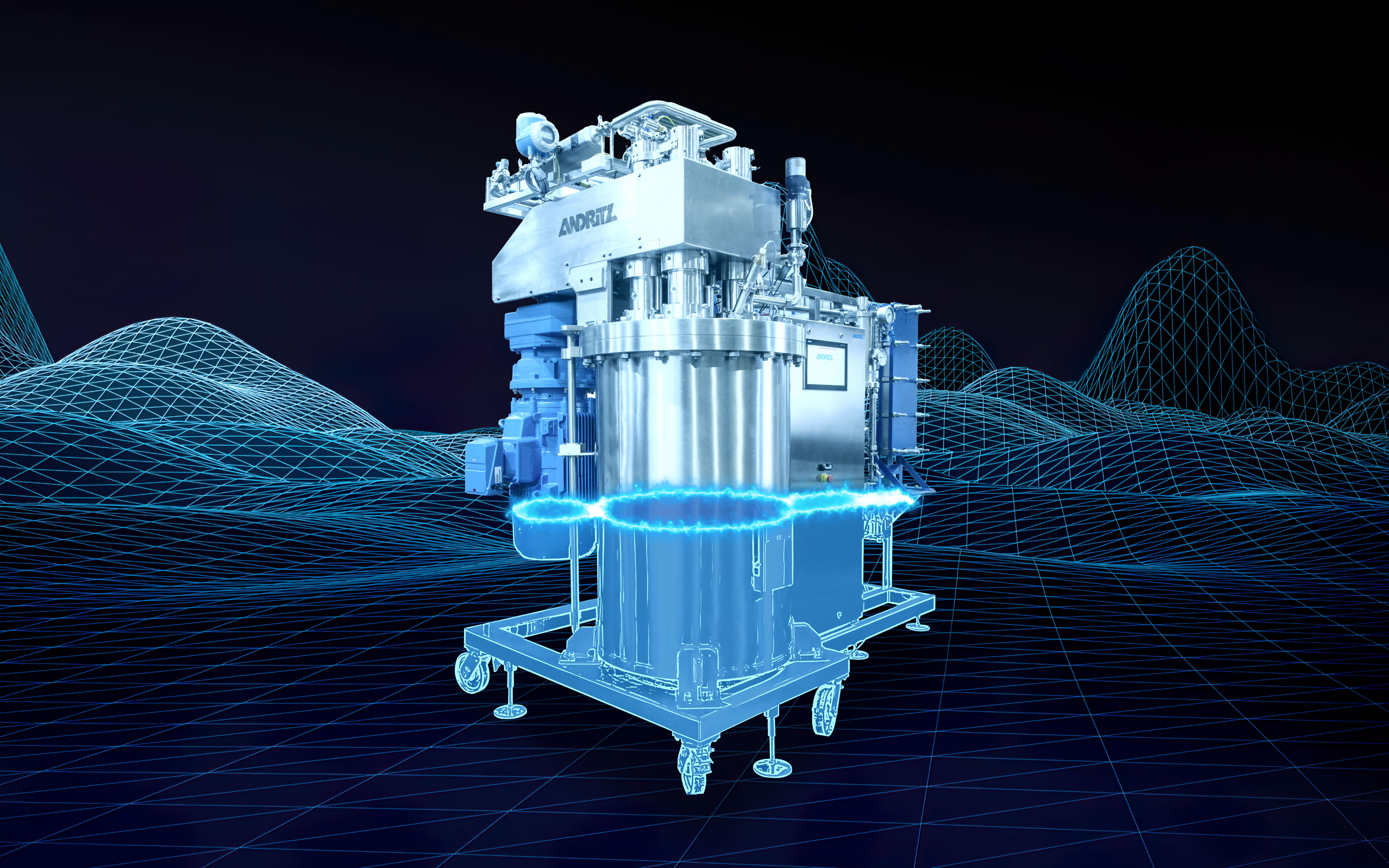

Next level optimization of your DCF performace with Metris addIQ digital twin for DCF

For most of the players in food and chemical industries, using a Dynamic Crossflow Filter (DCF) is an efficient way to filtrate different products but today, operations need significant improvement to gain in productivity and reduce OPEX, which is now possible thanks to Metris addIQ digital twin solution.

A digital twin is a digital replica of the physical process using asset-specific information such as actual physical dimensions and equipment characteristics. It runs in parallel with operations, continuously calculating key process parameters which sometimes cannot be measured or are difficult to measure by traditional instrumentation. Through proven simulation capabilities, combined with live plant data as an input provides virtual transmitters, it calculates continuously the optimal flow setpoint, and performs what-if scenario analysis.

  • Real-time process optimization: Optimization of throughput by advanced process control, in real time
  • Ease of use: Self-learning digital solution, no need for highly qualified staff
  • Safe operation
    • Prediction of optimum transmembrane pressure
    • Fast reacting adaptive control behavior in case of process conditions changes (anomaly detection)
    • Stabilizing process with less fluctuations in the permeate flow-rate

Improve your operation with Metris Digital Twin

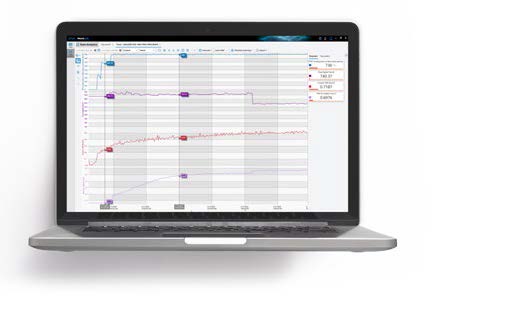

Process calculations by Digital Twin: All trends accessible on Metris platform
