Performance booster

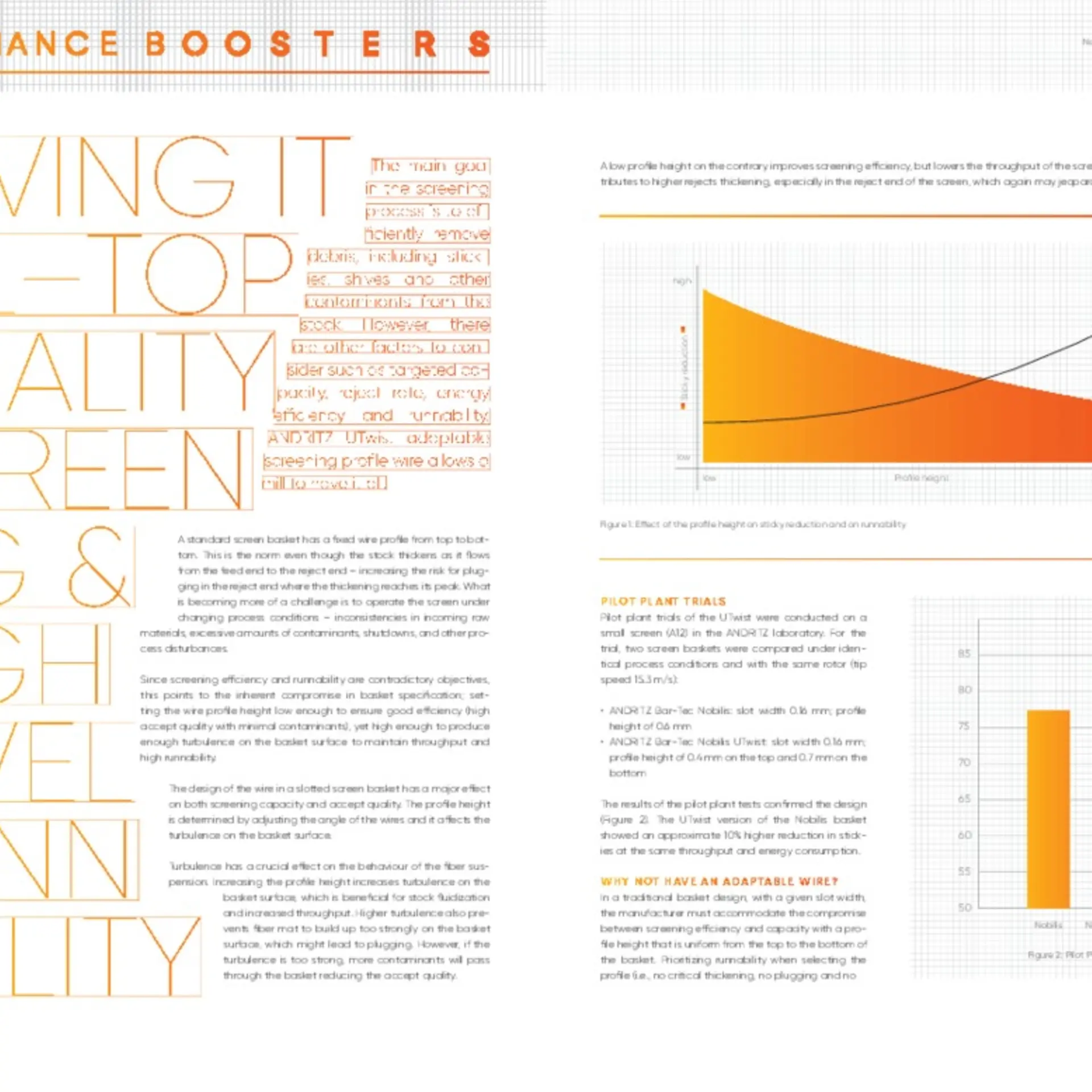

Having it all – Top quality screening & high level runnability

The main goal in the screening process is to efficiently remove debris, including stickies, shives, and other contaminants from the stock. However, there are other factors to consider such as targeted capacity, reject rate, energy efficiency, and runnability. ANDRITZ UTwist adaptable screening profile wire allows a mill to have it all.

The design of the wire in a slotted screen basket has a major effect on both screening capacity and accept quality. The profile height is determined by adjusting the angle of the wires and it affects the turbulence on the basket surface. Turbulence has a crucial effect on the behavior of the fiber suspension.

Increasing the profile height increases turbulence on the basket surface, which is beneficial for stock fluidization and increased throughput. Higher turbulence also prevents fiber mat to build up too strongly on the basket surface, which might lead to plugging. However, if the turbulence is too strong, more contaminants will pass through the basket reducing the accept quality.

A low profile height on the contrary improves screening efficiency, but lowers the throughput of the screen. It also contributes to higher rejects thickening, especially in the reject end of the screen, which again may jeopardize runnability.

PILOT PLANT TRIALS

Pilot plant trials of the UTwist were conducted on a small screen (A12) in the ANDRITZ laboratory. For the trial, two screen baskets were compared under identical process conditions and with the same rotor (tip speed 15.3 m/s):

  • ANDRITZ Bar-Tec Nobilis: slot width 0.16 mm; profile height of 0.6 mm
  • ANDRITZ Bar-Tec Nobilis UTwist: slot width 0.16 mm; profile height of 0.4 mm on the top and 0.7 mm on the bottom

The results of the pilot plant tests confirmed the design (Figure 2). The UTwist version of the Nobilis basket showed an approximate 10% higher reduction in stickies at the same throughput and energy consumption.

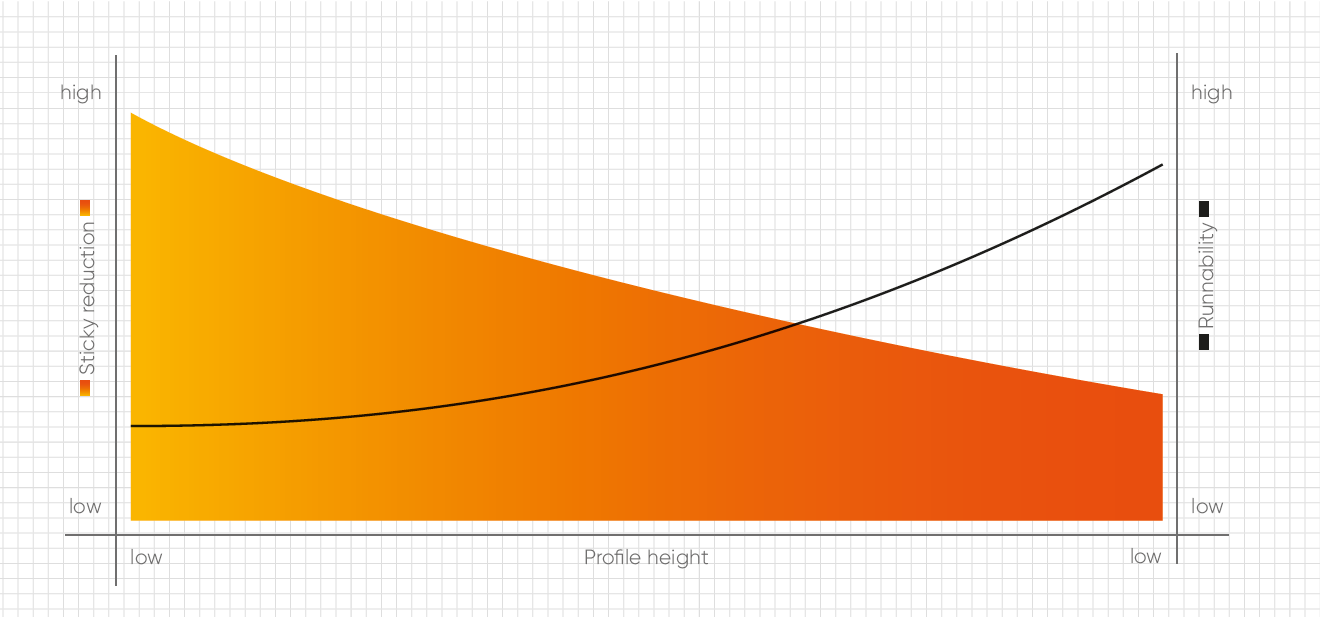

Figure 1: Effect of the profile height on sticky reduction and on runnability

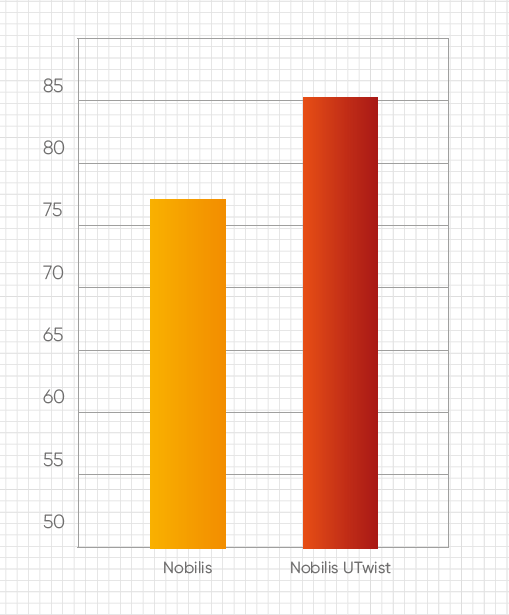

Figure 2: Pilot Plant Results

WHY NOT HAVE AN ADAPTABLE WIRE?

In a traditional basket design, with a given slot width, the manufacturer must accommodate the compromise between screening efficiency and capacity with a profile height that is uniform from the top to the bottom of the basket. Prioritizing runnability when selecting the profile (i.e., no critical thickening, no plugging and no unexpected shutdowns) ensures that optimum screening efficiency is never achieved. This is why the ability to tailor the profile height along the length of the wire – from feed to rejects – is so desirable.

Basket suppliers often need to specify a higher profile to create enough turbulence to avoid critical thickening, which can reduce screening efficiency. Therefore, the chosen profile height is not optimum for every position of the basket – meaning that the full potential of the basket is not achieved.

ANDRITZ has solved this problem by developing UTwist, an adaptable-profile wire which ensures the lowest possible profile height at any vertical position of the basket. The ability to adjust the profile height across the basket is unique, enabling low profiles close to the feeding zone to increase screening efficiency, and a higher profile in the following zone to avoid critical thickening.

The patented profile geometry enables tilting the wire without impacting slot width. This is not possible with any other profile wire.

IMPROVEMENTS ACROSS THE PROCESS

The efficiency and effectiveness of the screening process relies to a great extent on the performance of the screen basket. The development of the UTwist basket, a key and patented technology from ANDRITZ, allows improving the operation of virtually any screening system, regardless of the original manufacturer. With this basket design, the wire profile can be adjusted to account for variations in stock thickening as it flows from the feed end of the screen to the reject end.

The design allows setting the wire profile height low enough to ensure good accept quality by capturing rejects, and yet high enough to maintain throughput without plugging, ensuring high runnability. This feature has been tested and verified at ANDRITZ’s pilot plant and is now installed in approximately 60 mill applications.
