Connecting History with Future

Rock Island, USA - New Project

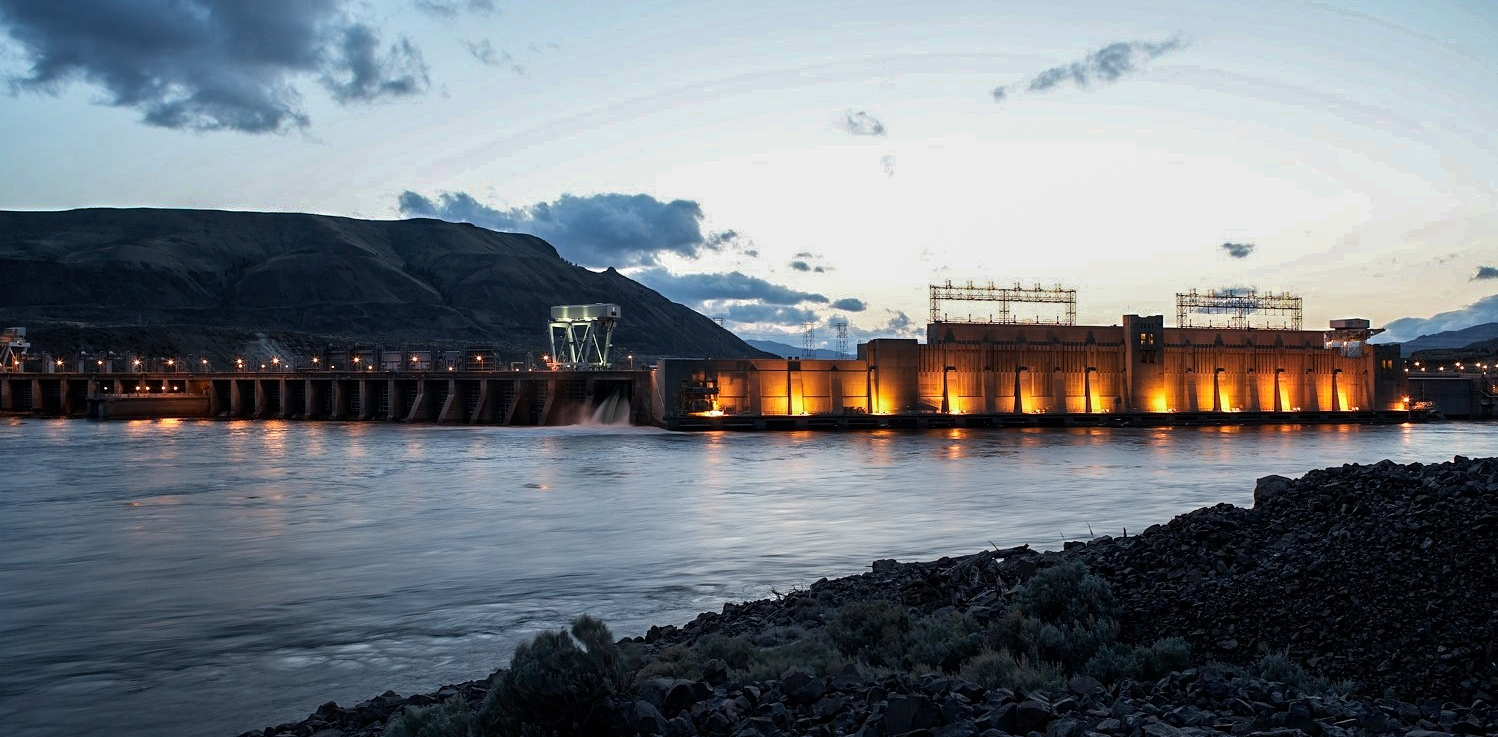

Located in Washington State, the Rock Island Hydroelectric Power Plant was commissioned in 1933 and was the first dam to span the Columbia River.

© Chelan PUD

Sited about 12 miles (19 km) downstream from the city of Wenatchee, units B1–B4 in Powerhouse 1 were the first turbine generator sets installed on the Columbia River. In the 1950s another six generating units were installed in Powerhouse 1 and a second powerhouse with eight Bulb turbine units was subsequently commissioned in 1979.

ANDRITZ HYDRO was awarded a contract by Chelan County PUD to modernize units B5–B10 starting in 2006. Now, ANDRITZ HYDRO has received a new contract to modernize the first four units, B1–B4, at Rock Island Powerhouse 1.

“It’s a proud moment to move forward with this modernization work and to have the oldest turbines on the Columbia be replaced by the newest turbines.”

Randy Smith, Chelan PUD Commission President

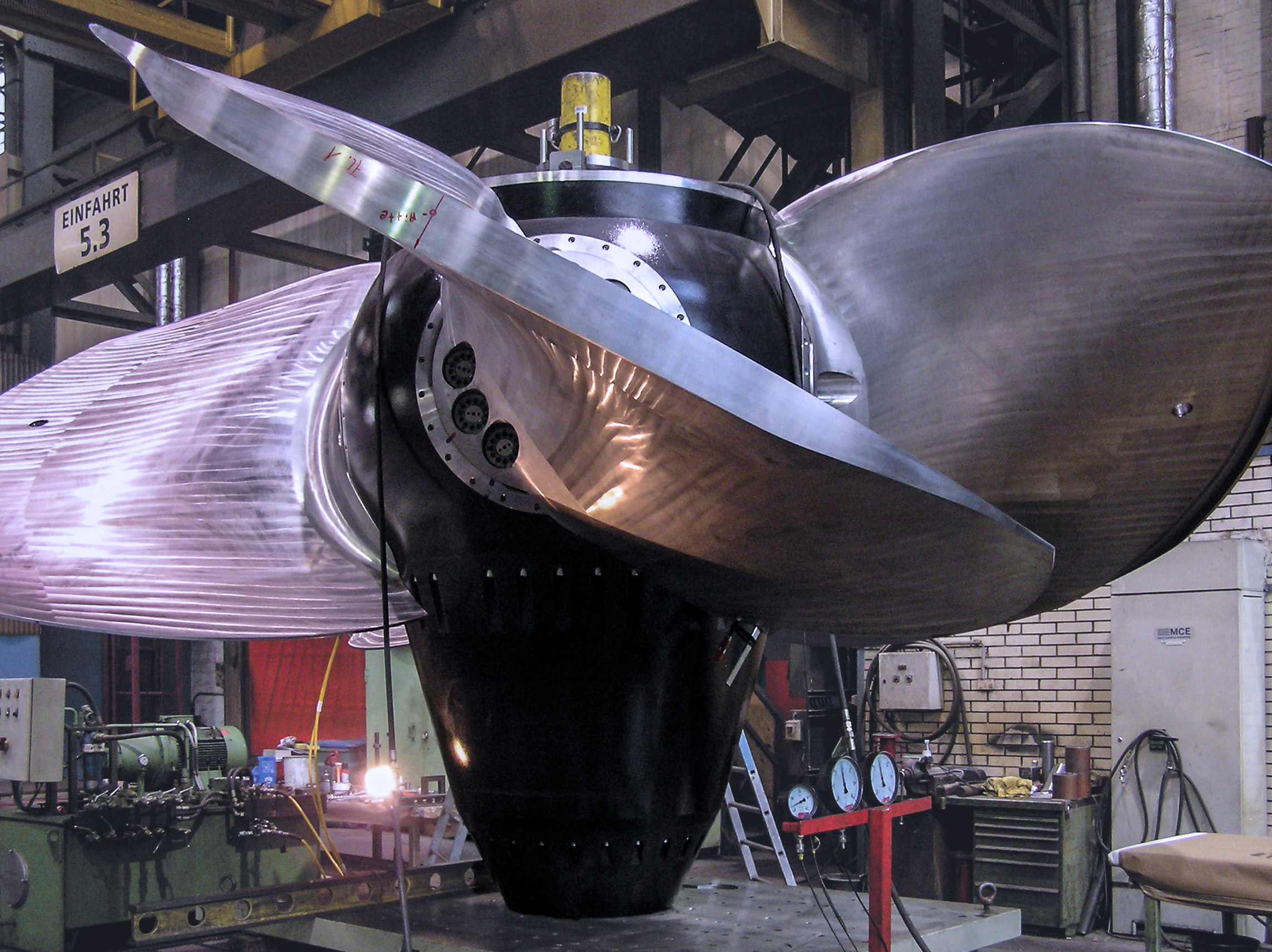

ANDRITZ HYDRO’s proposed turbine design increases capacity, at lower heads, and boosts unit efficiency, providing incremental value to Chelan PUD. Another benefit of the new runners is the fish-friendly design, reducing the number of blades from six to four and reducing the risk of blade strike by a factor of 33%. Blade strike is a leading stressor affecting fish survivability. Cavitation is also a key stressor with impact on fish survivability. The design also reduces cavitation so that the runners are essentially cavitation-free over the entire operating range (see also "The big difference - Fish friendly designs).

ANDRITZ HYDRO offered an alternate approach to this project by taking three units out of service for simultaneous modernization. This approach will result in the modernization being completed six months earlier than specified. Under the proposed schedule, Chelan PUD achieves greater ­­flexibility to address any future unplanned outages and will have the units available prior to Chelan PUD’s “check in” for its Habitat Conservation Plan (HCP). This plan is a 50-year commitment to ensure that Chelan PUD’s hydro projects have no net impact on mid-Columbia salmon and steelhead runs. ANDRITZ HYDRO is proud to support Chelan PUD in meeting its HCP commitment.

TECHNICAL DATA

Total output:  218 MW
Scope:  4 × 20.7 MW
Voltage:  13.8 kV
Head:  40 ft (12.19 m)
Speed: 100 rpm
Runner diameter: 228 inch (5,791 mm)

Author: Darren Houghton

Landscape near Nam Na 1, Vietnam

Next article

30 MW for Vietnam - Nam Na 1, Vietnam

Read more

List of all articles

Overview of content in HYDRO News 31

Read more
Contact us
HYDRO News Editorial Office
Eibesbrunnergasse 20
1120 Vienna
Downloads

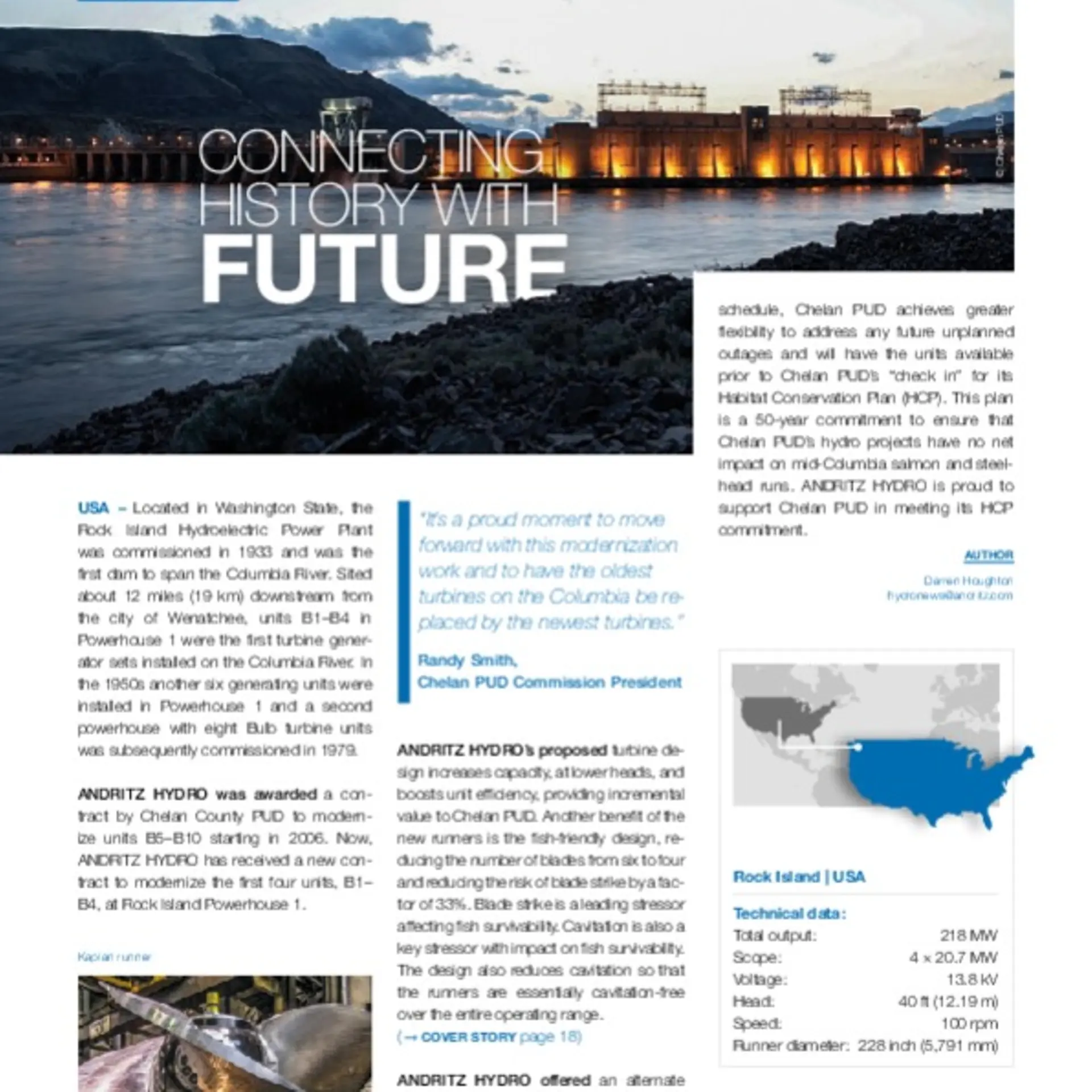

  • Rock Island, USA PDF : 375 KB
